I cut a couple of test panels today and tested them with partial builds of both modules. Everything fits! Drawings for the Euro panels have been added to the top post. “X” marks the spot for center punching, and you can probably get away with a .25" drill for everything. A 6mm drill will be a little small for some toggle switches, maybe, but should otherwise work OK.

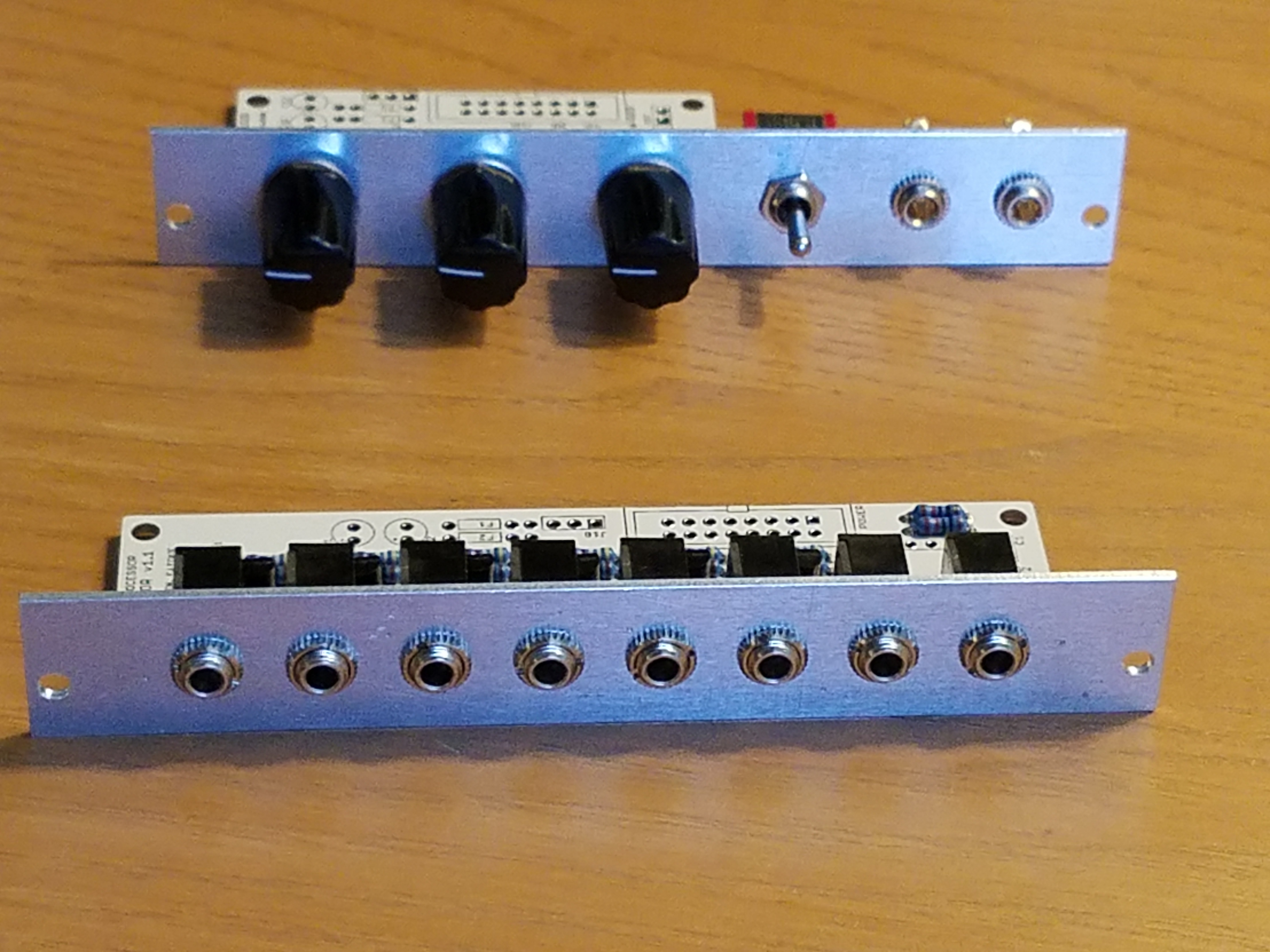

This is more or less what the assembled units will look like (many components are missing from the PCBs on these and the knobs are Small Bear Davies clones, not the nicer Erthenvar Davies clones I’ll be using):

5 Likes

I can only imagine that pairing the function generator with the luma processor from the vidiot would be great fun

faceplate art project!

1 Like

I have done this with the luma processor patch on the Arch, and it’s quite cool indeed.

1 Like

I received mine in the mail today. Thank you thank you thank you!

2 Likes

Great. Excited for the builds.

Thanks for update.

I guess for scribbling on the panel it would be the same as this?

2 Likes

And same for this.

2 Likes

Yes, the order is the same as the “factory” faceplates as long as the PCB is to the left (looking from the front).

2 Likes

as lars said to me, the proper way to do the panel is with dymo labels. see the original IPs

7 Likes

I’ve been lurking on the forum for some time but this has convinced me to sign up, I’d love a set of PCBs so I’ll be in touch whenever the option to PM is made available, hopefully there will still be some left by then.

1 Like

Pcbs arrived yesterday. Thank you!!!

1 Like

Nice to see these getting through the mail safely. :slight_smile:

Sunday update:

Mouser, Digi-Key, and Erthenvar orders were submitted today. I have enough parts coming to fulfill all assembled module requests plus (3) more latecomers. I expect to start shipping completed modules the week of the 24th. I’ll notify you via DM when your set is ready to ship. Domestic USA postage is included in the US$147.00 price; I’ll know the actual international postage once I’m able to weigh a completed & boxed set, but I estimate it will be in the neighborhood of US$10-15 extra.

Panel + PCB orders will start shipping tomorrow. Extra postage is minimal (50 cents), so $20 covers everything.

There are 9 sets of PCBs remaining. I can make as many panels as needed, including for people who already have PCBs, for $10 each, shipped. As a reminder, these are bare aluminum and ready for your Dymo, Sharpie, or psychedelic oil paint art.
