All About Shapechanger

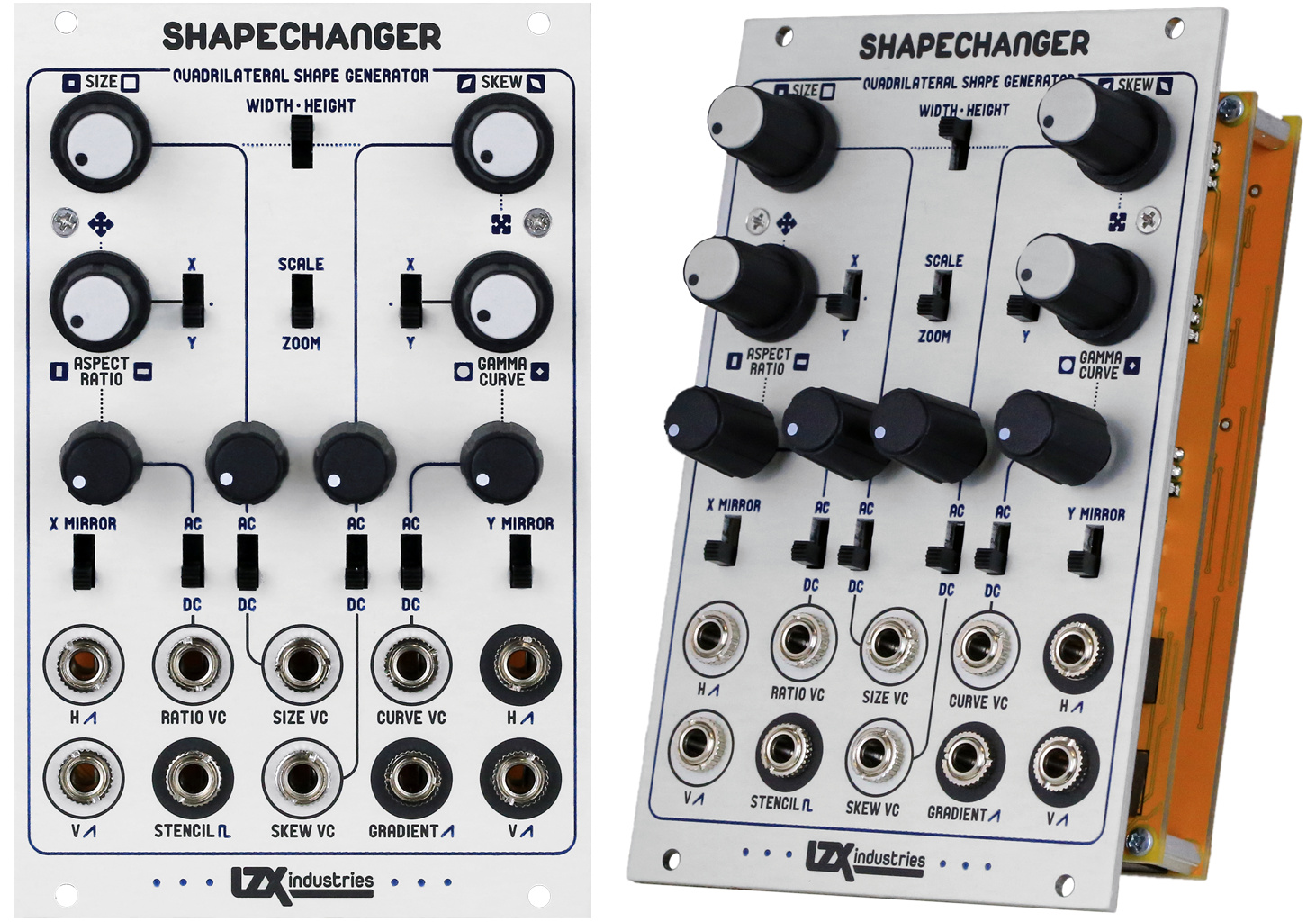

Shapechanger is our most ambitious analog computing module to date. Designed to take two continuous input voltages representing X and Y points on a display, Shapechanger processes the size, width, height, aspect ratio, symmetry, and curve of a resulting quadrilateral figure.

Specifications

  • Width, 16HP
  • Mounting Depth, 45mm
  • Power +12V @ 220mA
  • Power -12V @ 220mA

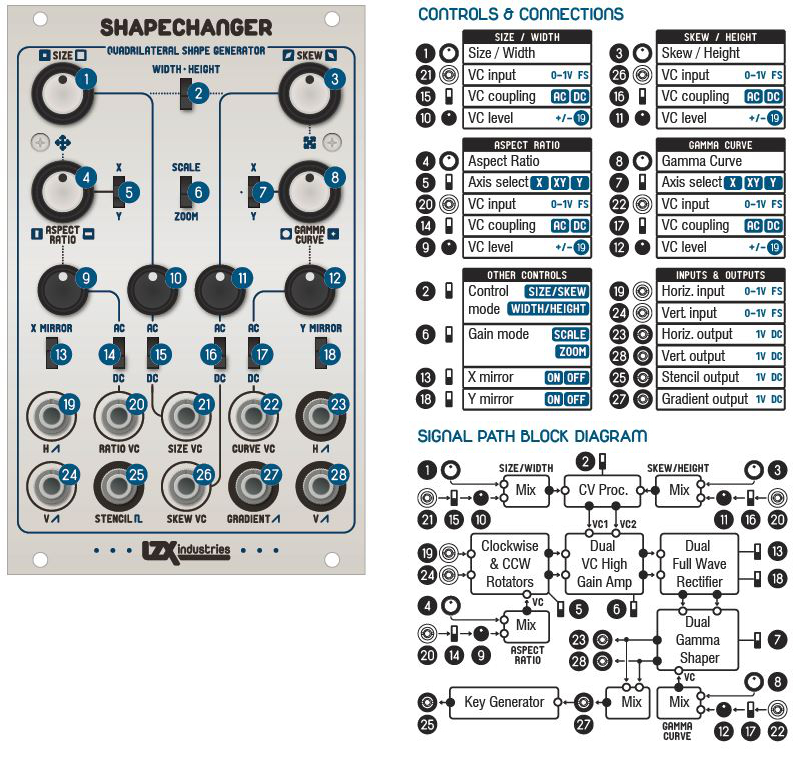

User Reference

Videos

Patching Tips

  • Use mults to send the same modulation source to multiple VC inputs at once. Use mixer modules (like Passage or Bridge) to mix together many modulation sources.
  • Try feedback of the horizontal and vertical outputs back to the VC inputs.
  • Try patching multiple Shapechanger modules in parallel, and use a keyer module like Doorway to composite the two resulting shapes together.

Downloads

Other Resources
