Issue with shapechanger

Helpdesk
1

Hello,
I just received my shapechanger. I dont know if i m doing something wrong with it or if i have an issue with it.
Using navigator shapechanger combo i m not able to create a shape and play with as i should do.
So to check the SC i ve pluged directly the H and V ramp from VC. Here the result :

20190303_202939
20190303_2029391932×2576 865 KB

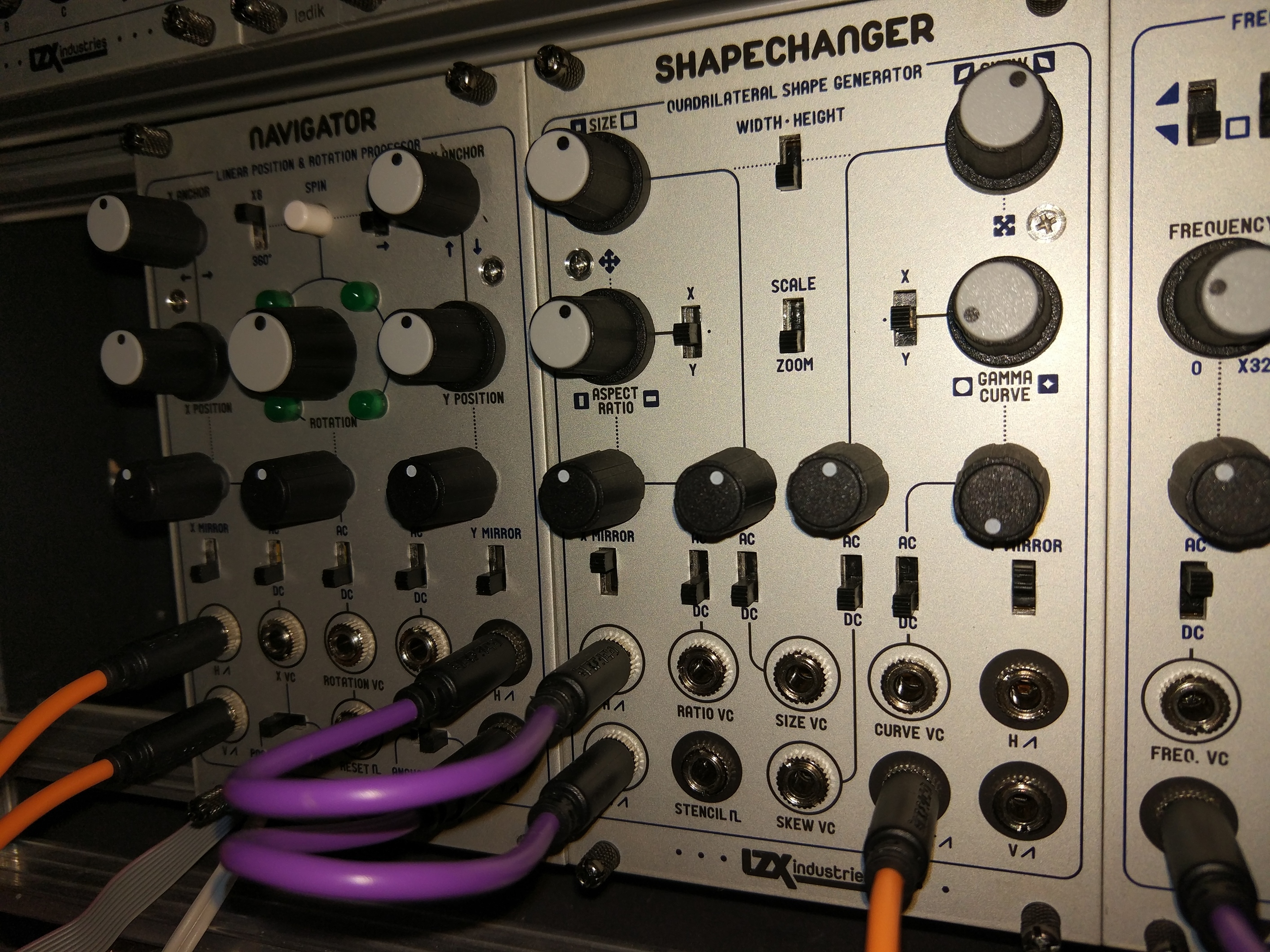

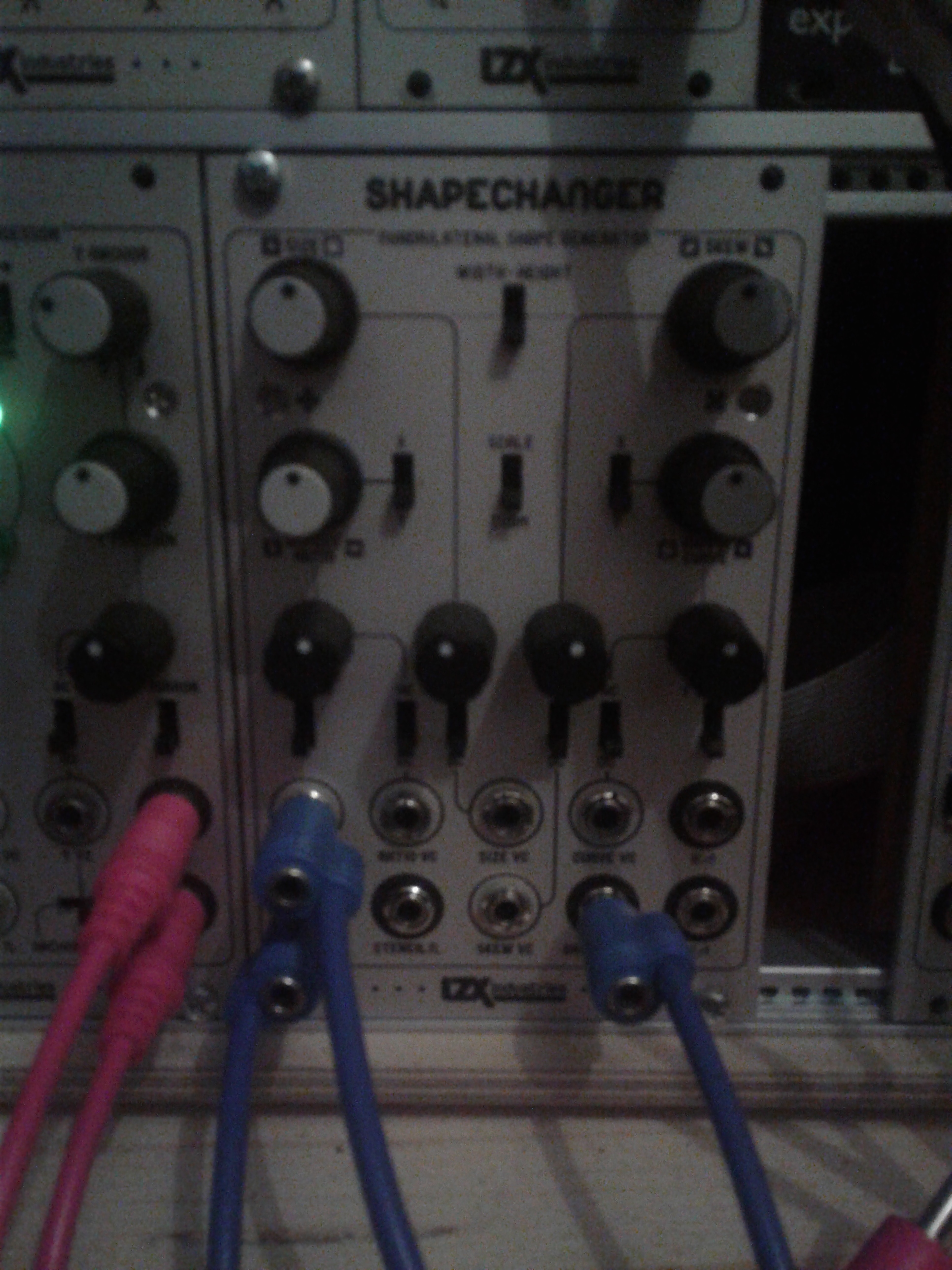

Here the SC setup
20190303_202958
20190303_2029581932×2576 1.48 MB

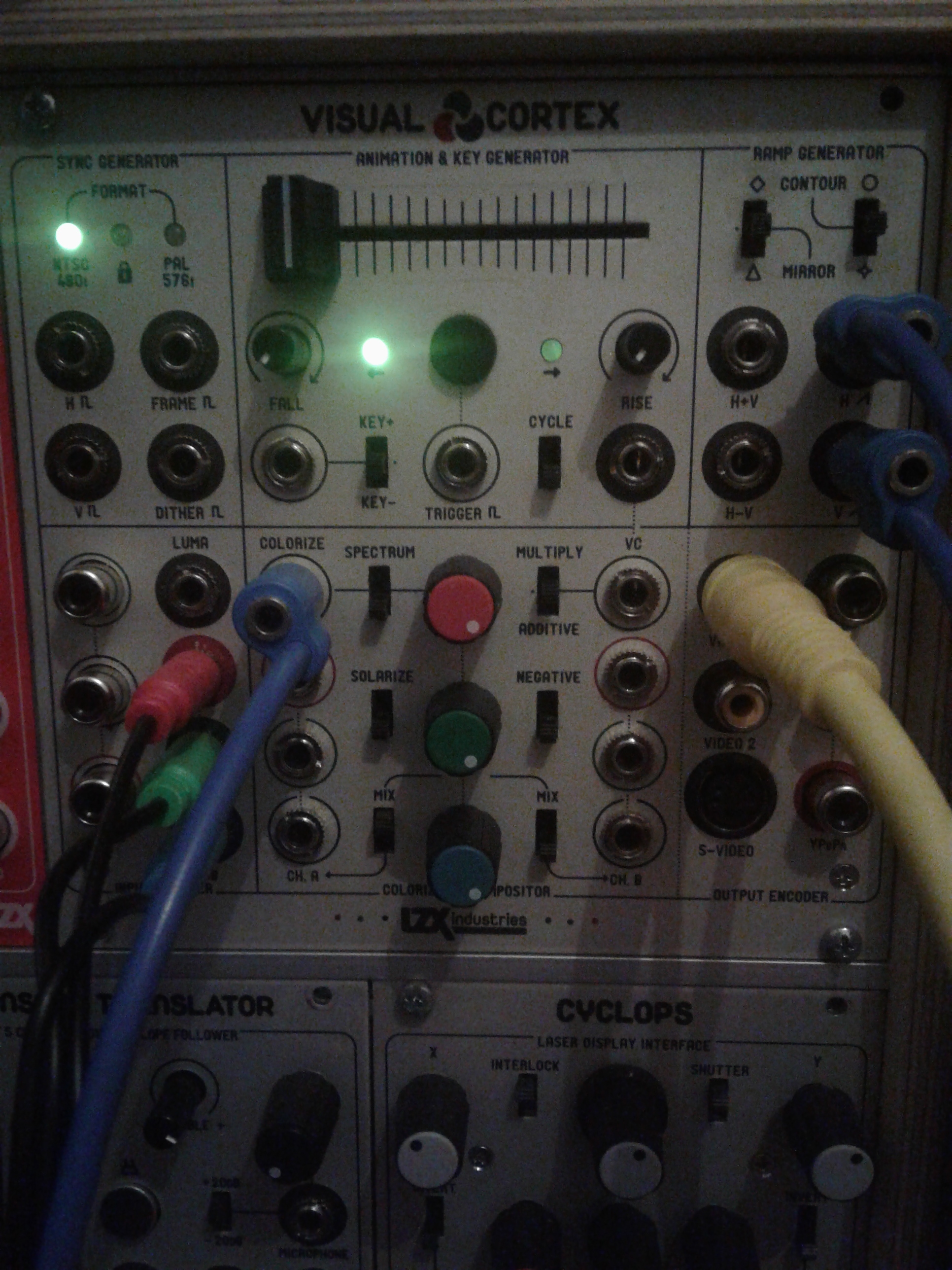

Here the VC setup
20190303_203029
20190303_2030291932×2576 1.65 MB

if someone can help me…

thx

denis

4

Thank you.

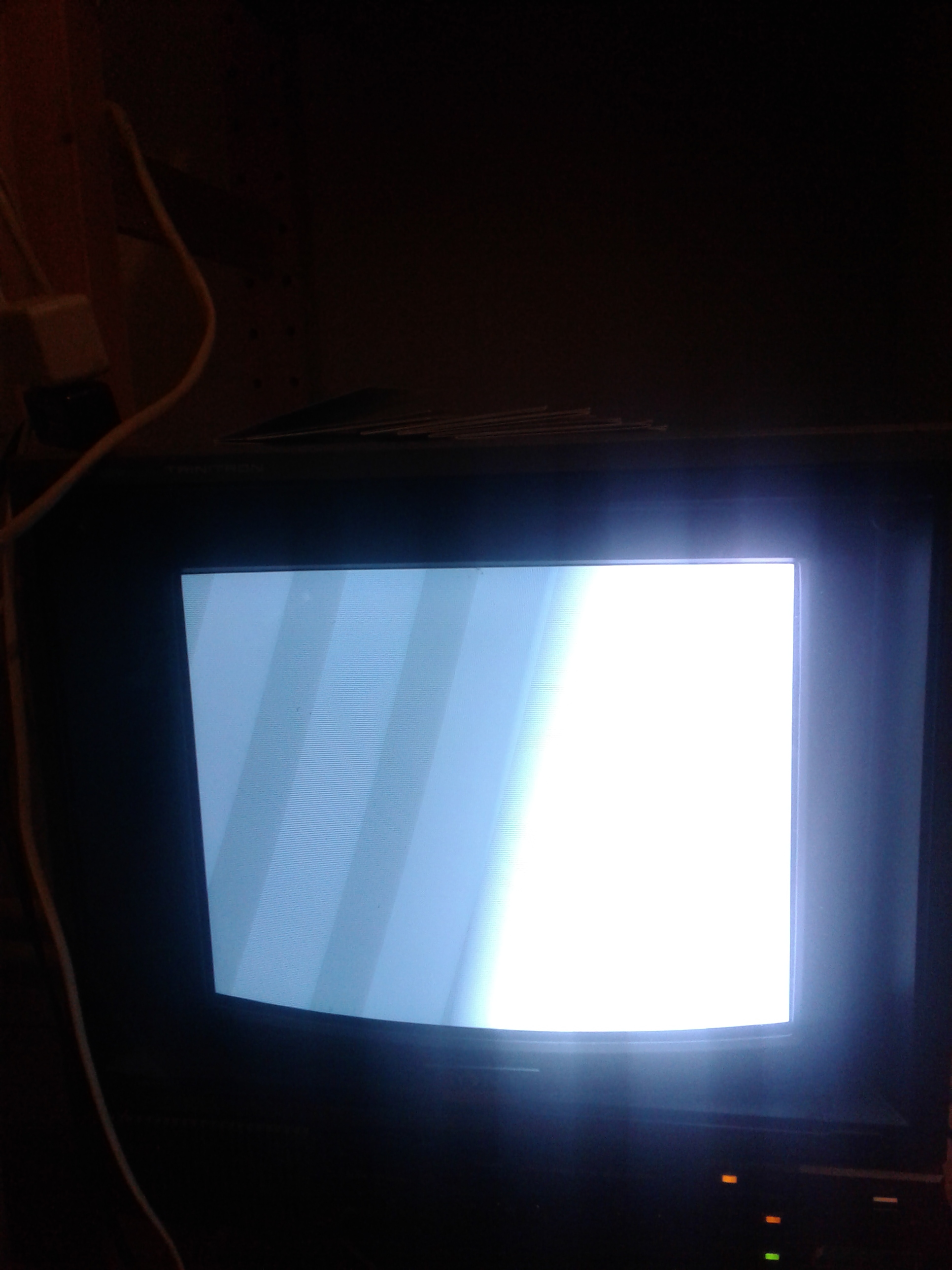

I ve tried. always the same result a screen splited with a white side and a black side.
No shape…

6

yes of course !
only the navigator. shapechanger doesn t have rca sync

7

you will need to play with the mirrors to get it working and do 2d quadrilateral shapes, it will take you time to understand all the options shapechanger has.

8

Try this patch, check all switches are the same

IMG_20180728_003631
IMG_20180728_0036312828×2121 2.24 MB

IMG_20180728_003636

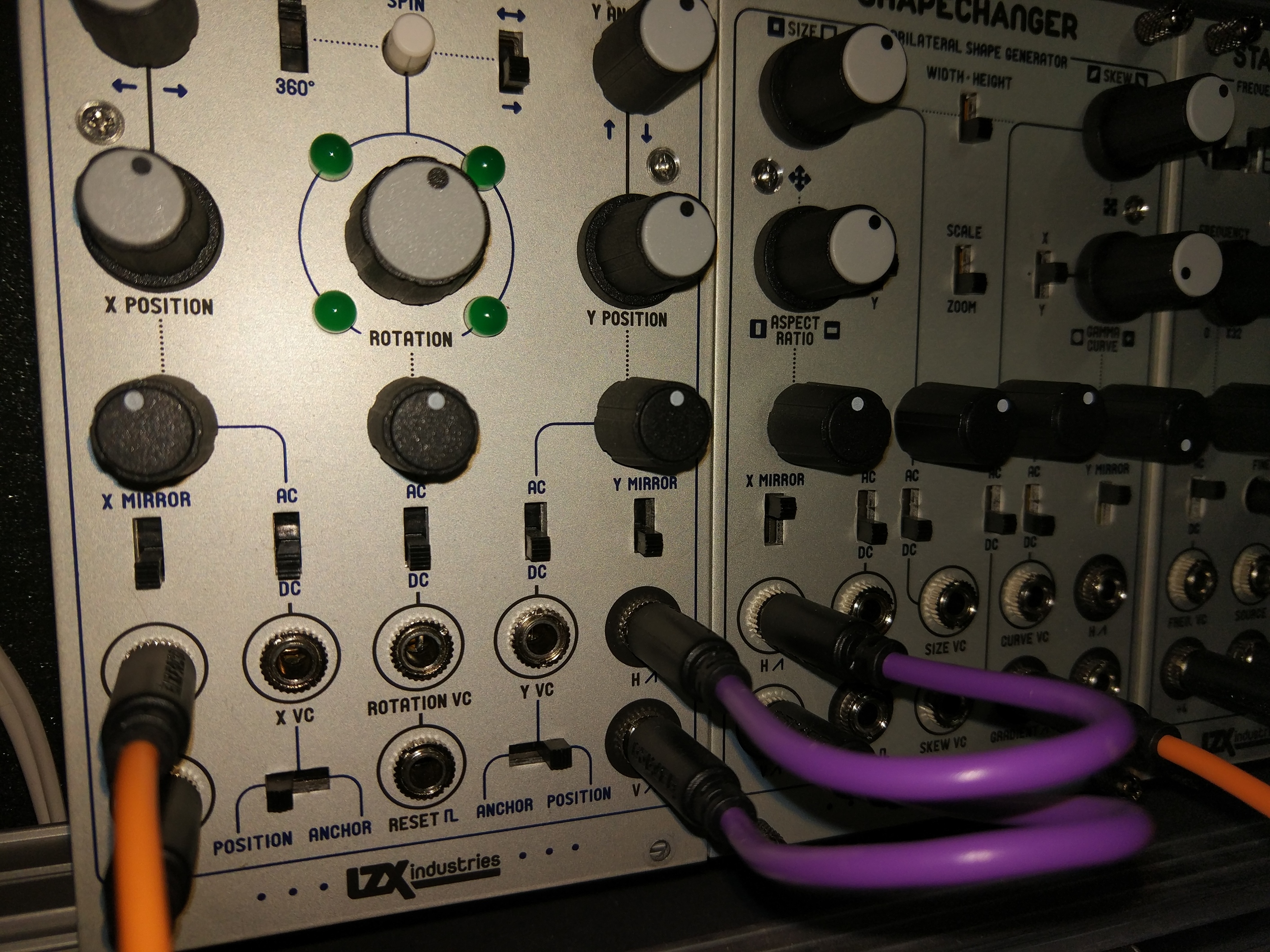

IMG_20180728_0036362828×2121 2.38 MB

IMG_20180728_003631
IMG_20180728_0036312828×2121 2.24 MB

9

Does the shape show correctly with ramps plugged into shapechanger only?

10

Hey tanks. you re right, need time to understand the beast. mirror switches solved all my questions.
thanx

11

Yep, both mirror switches up! The user reference card contains the “home position” in an illustration in case you get stuck.
