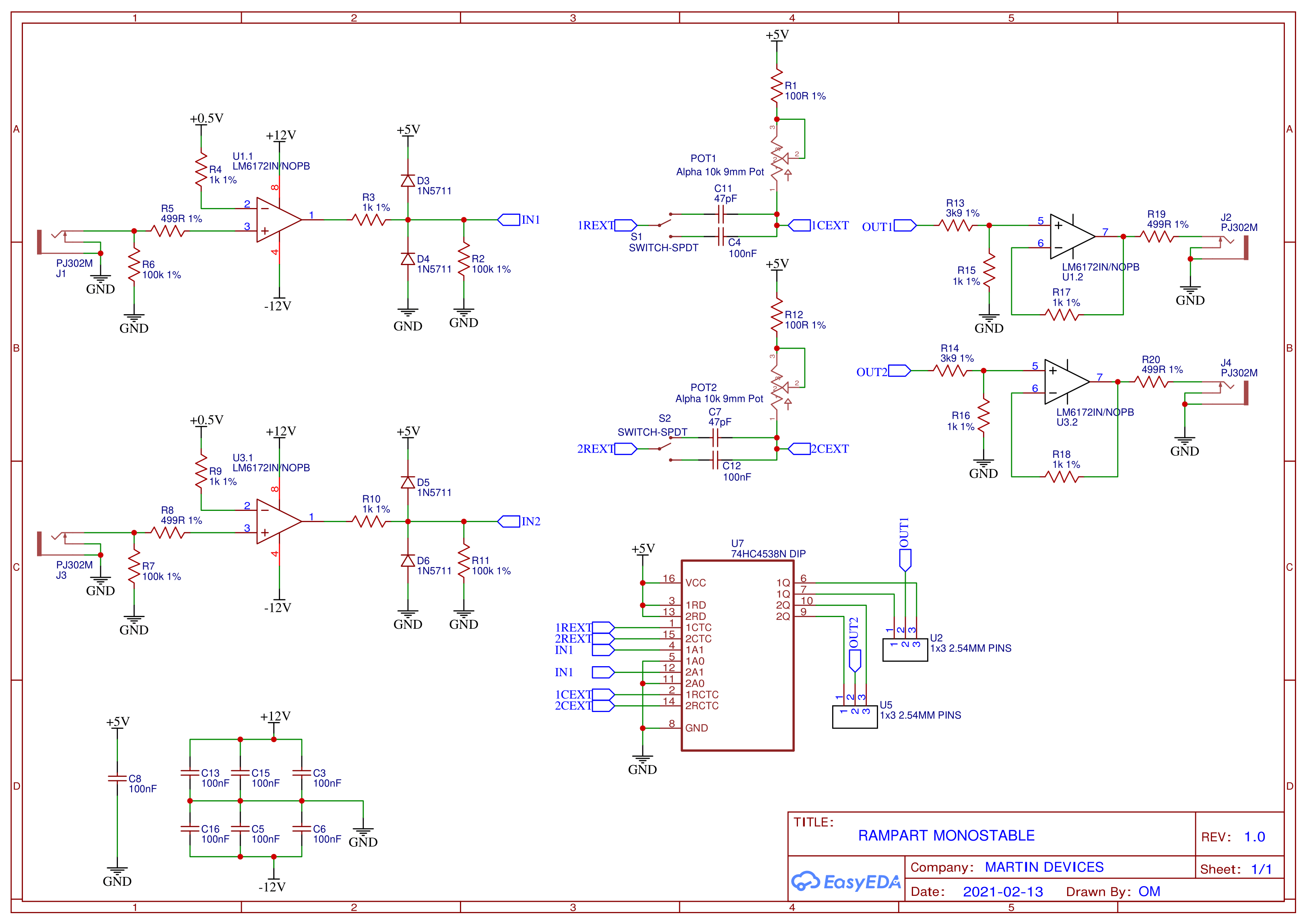

A work in progress for you here. I’ve put together a schematic for a dual monostable generator. For those unfamiliar with monostables its effectively a one shot pulse generator. On receiving a positive edge on the input the output pulses high for a period of time defined by an RC circuit.
The plan is to squeeze it all into 4HP, with a potentiometer to control each monostable and a switch to change the timing ranges. Originally I started designing a NAND gate based monostable but the 74HC4538 IC is designed exactly for this function and gives the option of an inverted output without any additional circuitry. The inverting output allows more flexibility with using one monostable to trigger another, the plan is to use a jumper choose between a normal or inverted output on both circuits.
The supporting circuitry is based off of the Castle range so as always props to Phil for doing the leg work!
I feel like this fills a missing gap in the Castle range (Hence the name Rampart), but quite how useful this is remains to be seen.

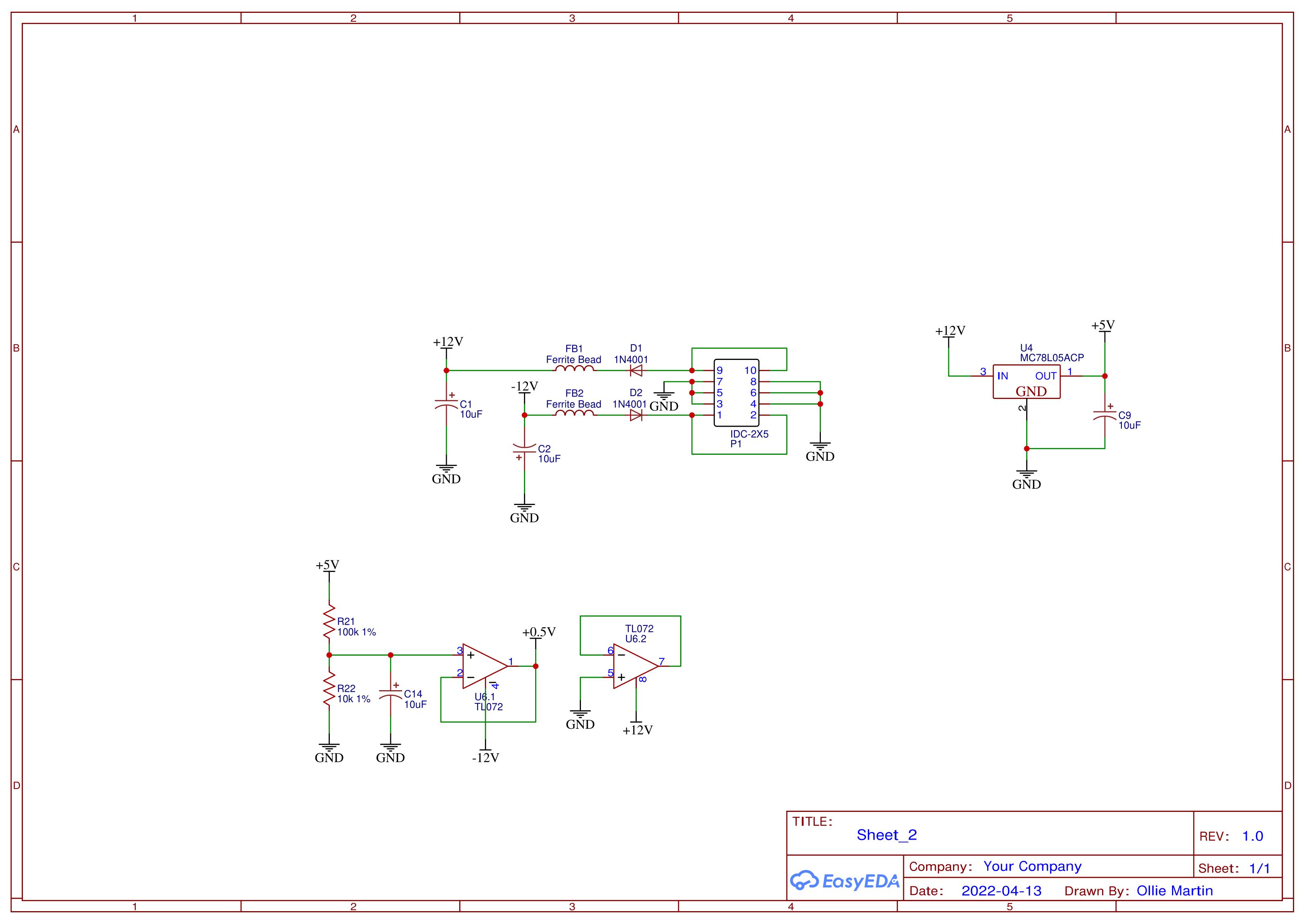

Will hopefully get a panel and PCB drawn up, get this breadboarded and see what the video looks like. I’m hoping it might play well with the Differentiator! I still need to properly work out what the best RC values are to give the widest range. Any corrections, suggestions etc are much appreciated. Power circuitry is on another sheet but is very standard.
Cool idea, Ollie.
I think you need to two extra resistors: One on the negative pin of each comparator to divide the +5V down to +0.5V.
Or you could add a 0.5V reference to do the trick.
If I am understanding correctly, this will act as sort of an edge-detect; triggering a pulse (of controllable width) every time the input transitions from below the reference voltage. That being said, it may be worthwhile adding a pot to control the reference voltage from between 0V to 1V. That should give it more or less sensitivity when working with generally brighter or darker inputs.
If you were to try that out, I would definitely suggest adding a TL431 and TL072 with an extra pot.
I understand that 2xPots and 4xJacks pretty much fills a faceplate… I wonder how you’re going to fit those switches too.
The negative pin is supposed to be tied to +0.5V (like the rest of the castle series, referenced by a TL431) - late night schematic design yields late night mistakes
Good idea on the reference pot, I was going for the module being in line with with the Castle series but I’ll experiment with the idea!
On spacing I think I can just squeeze 4 jacks, 2 pots and 2 switches into the 4HP, hopefully doesn’t impinge the ergonomics too much.

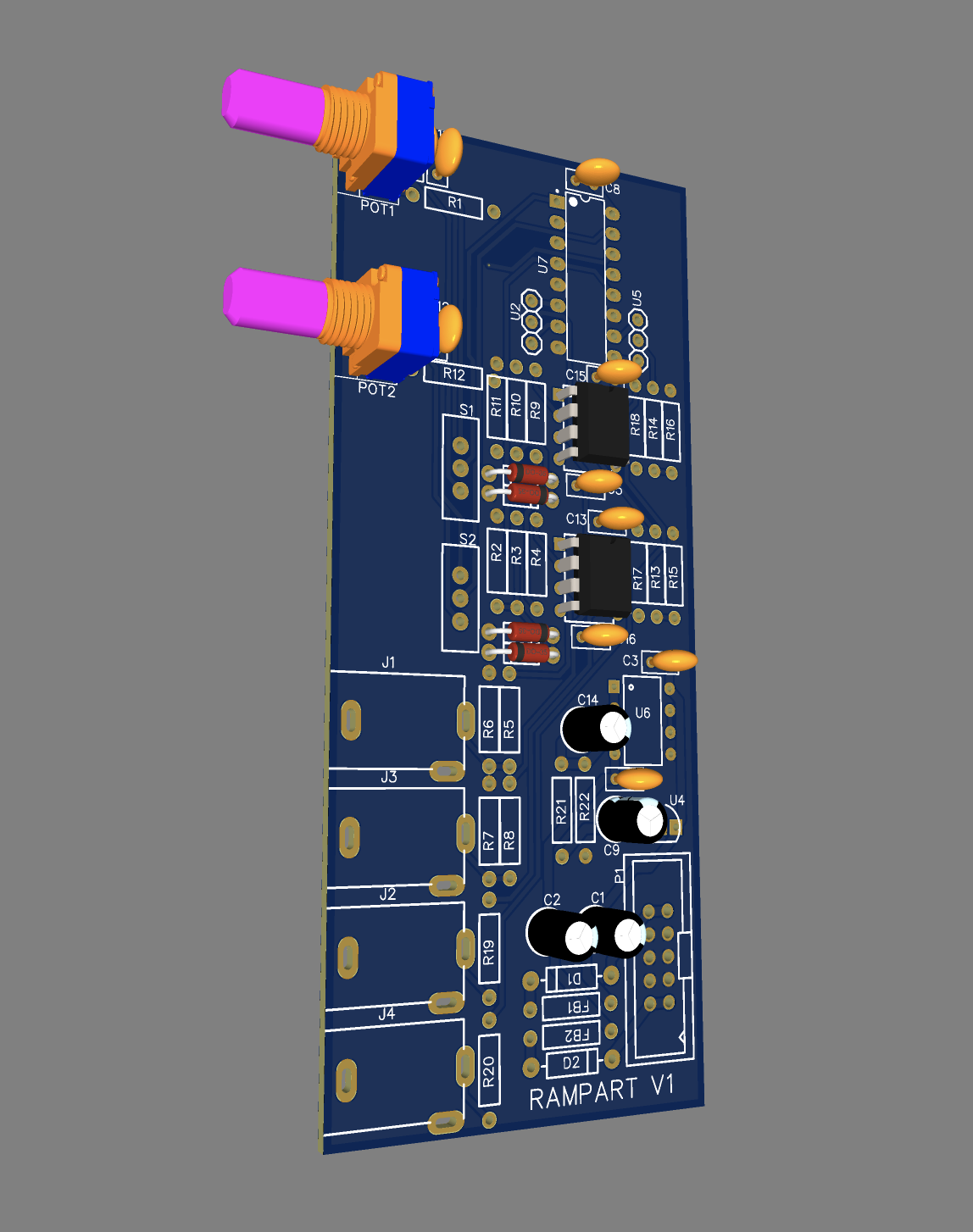

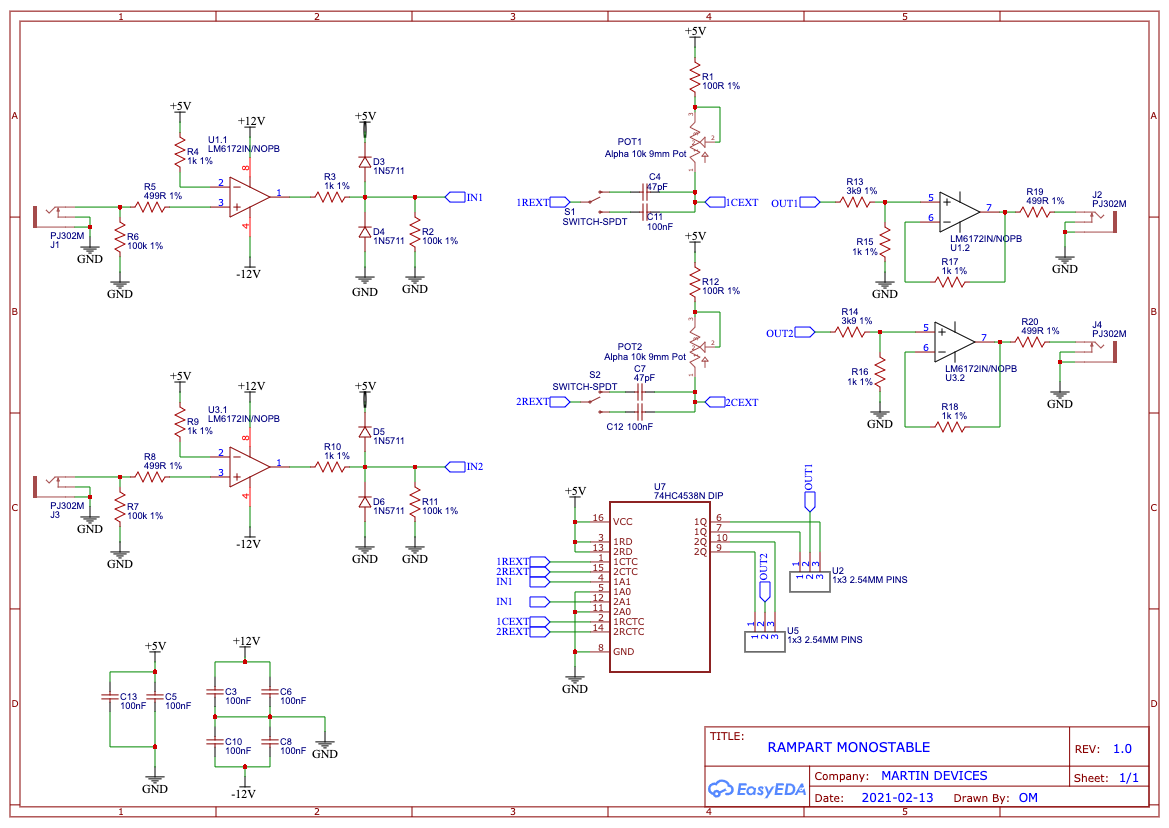

Made the changes suggested to the schematic. Here’s 3D model of PCB, apologies for not having all the components in 3D. Will do a proper design check tomorrow and look at getting a test batch ordered.
Oh yeah you’re completely right on R12 trying to squeeze designs in around work and play means I end up making these silly late night mistakes, I appreciate the sharper pair of eyes!
We had a prototype of our VCO once, that attempted a “one-shot” mode – it blanked the waveform after a single cycle, it was cool but needed further development.
Burst generator with decaying envelope as amplitude modulator would be a cool one to try too.

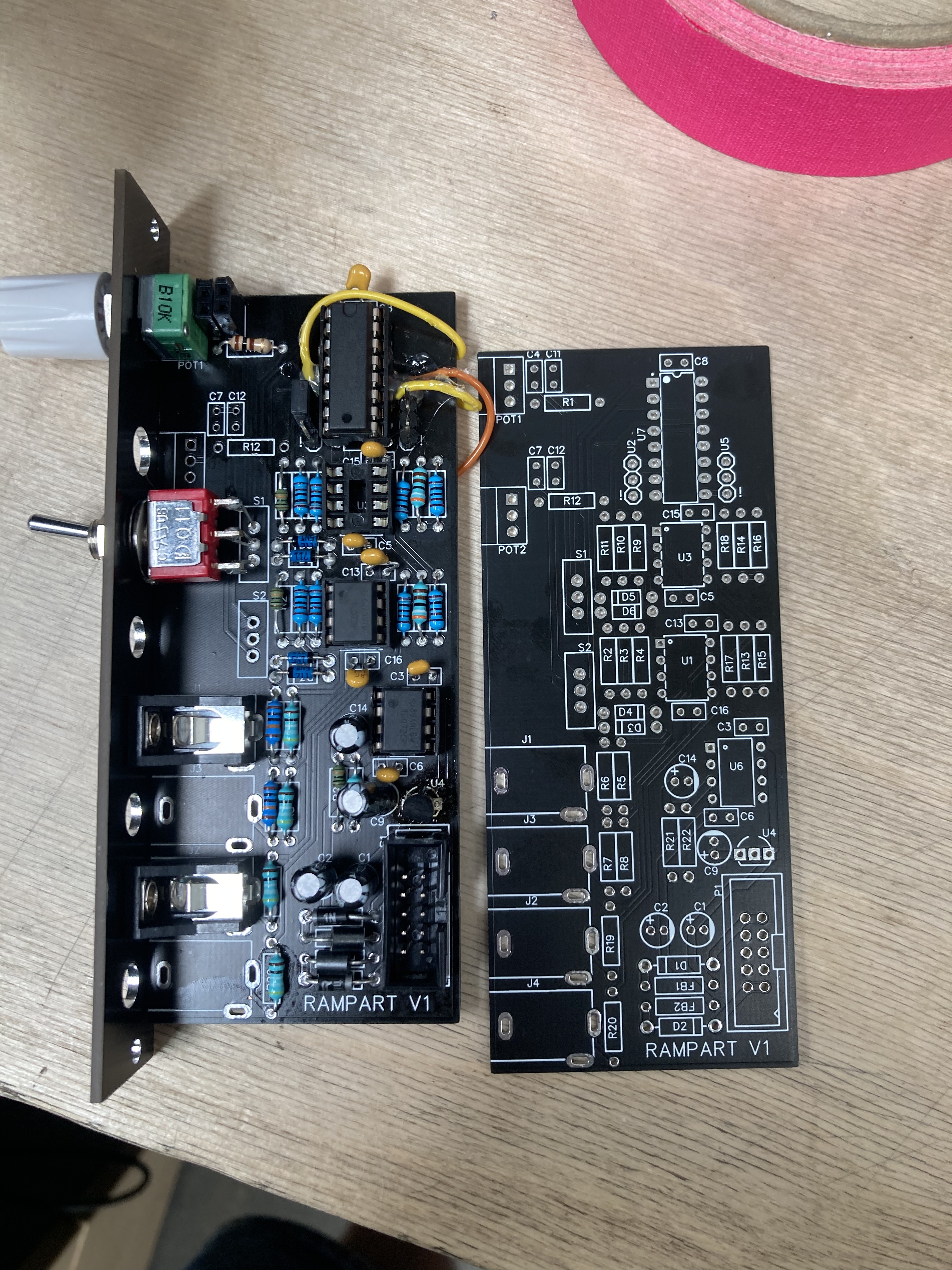

Boards arrived, found a few errors (one day I’ll make a board without stupid mistakes!) but a cut track and a few tacked on wires should hopefully resolve them. Will get it on the scope and tested this weekend, maybe even some video stills if all goes well!

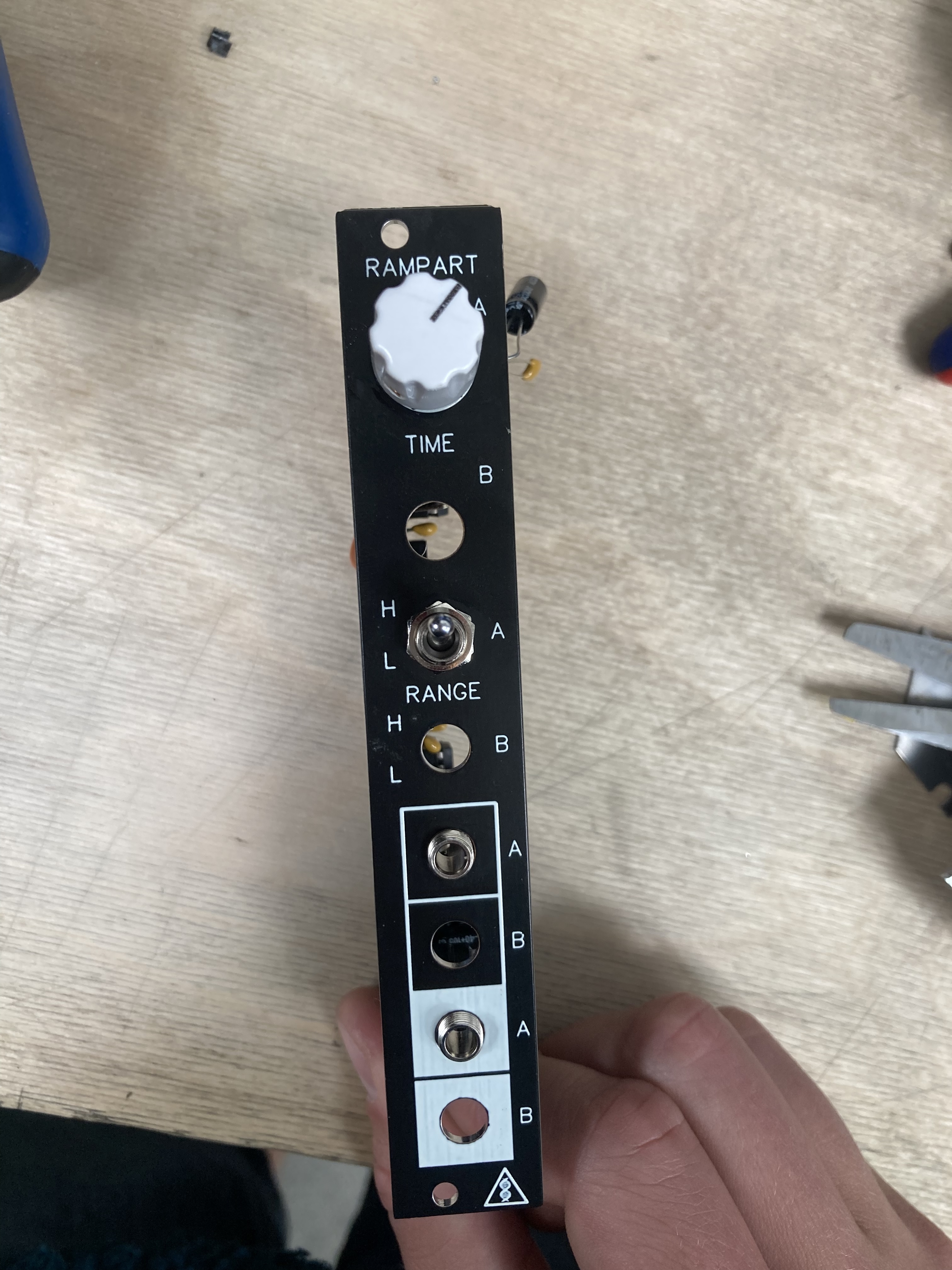

Front panel design was just thrown together quickly, obviously I’ve copied the Castle design style but if anyone has any suggestions or wants to help do a nicer front panel please let me know.
The bottom Jack is pretty low on the panel, it fits in my case fine but is closer to the bottom rail than any other module I own, does anyone see this being an issue (other than aesthetically)? I’m tempted in the next version to go for the 2 x 2 vertical mounted jacks like on some of the Syntonie modules.
