Triple YRGB Distribution Amplifier
BOM, Build guide and Schematics
Expand for BOM
| Qty | Value | Parts |
|---|---|---|
| 8 | 100K resistor | R1 - R4, R20, R21, R27, R28 |
| 20 | 499R resistor | R5 - R19, R22 - R26 |
| 4 | 100n capacitor | C3, C4, C5, C6 |
| 2 | 1N4001 diode | D1, D2 |
| 2 | 68R ferrite bead | FB1, FB2 |
| 2 | LM6172 op amp | U1, U2 |
| 1 | 2x5 (10-Pin) male header | CONN1 |
| 2 | 10uF 25v electrolytic capacitor | C1, C2 |
| 16 | PJ302M jacks | J1 - J16 |
| 1 | 6-pin female stackable header | misc |
| 1 | 6-pin male pin header | misc |
Expand for Build Guide

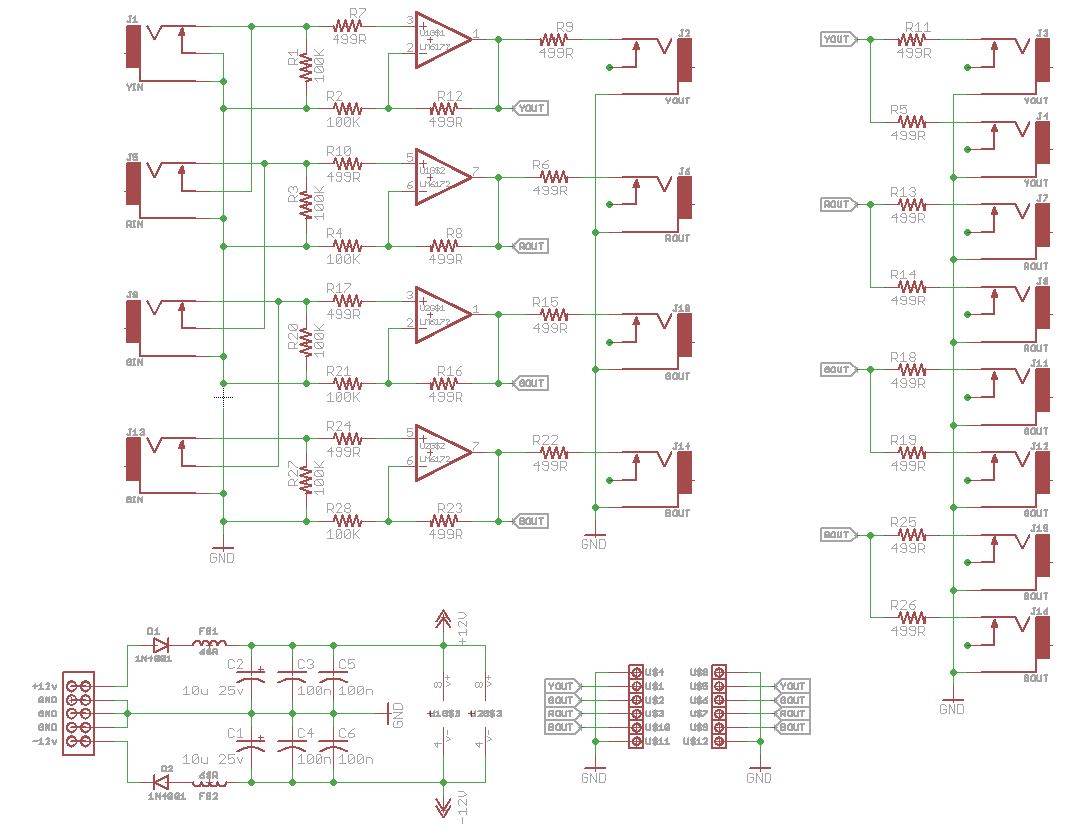

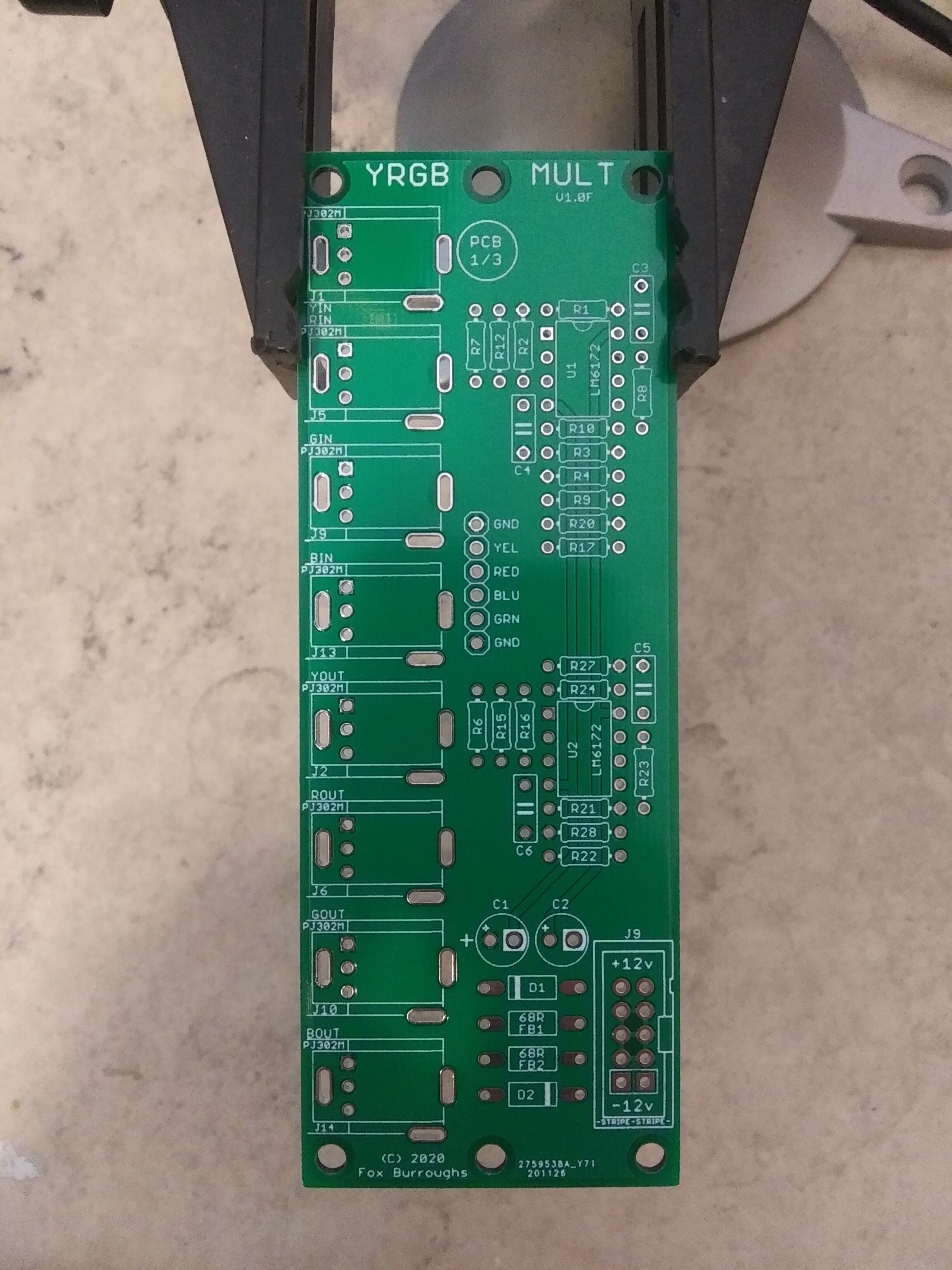

PCB 1:
Populate shortest parts first.

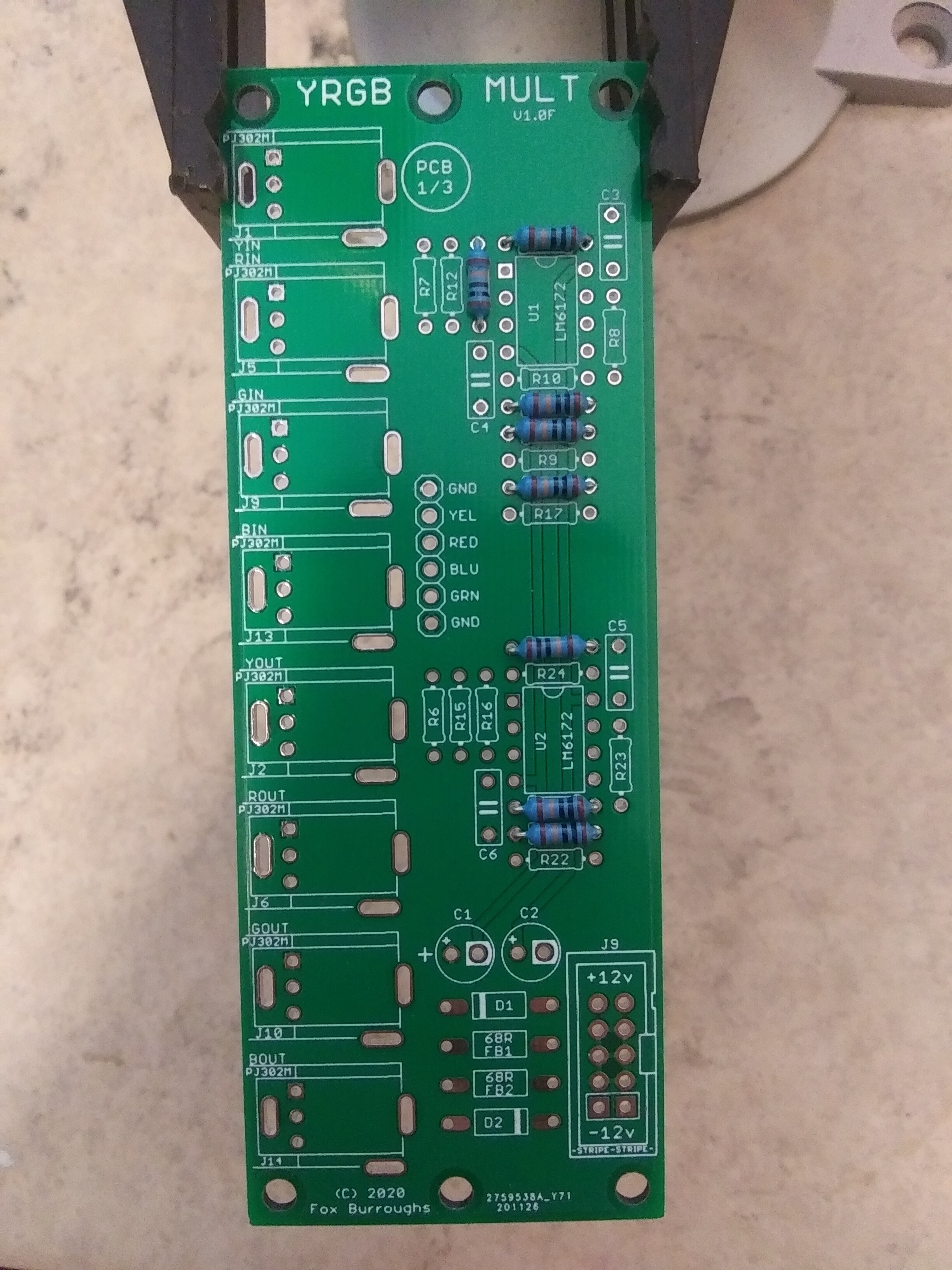

Step 1: 100k Resistors
R1-R4, R20, R21, R27, R28: 100k

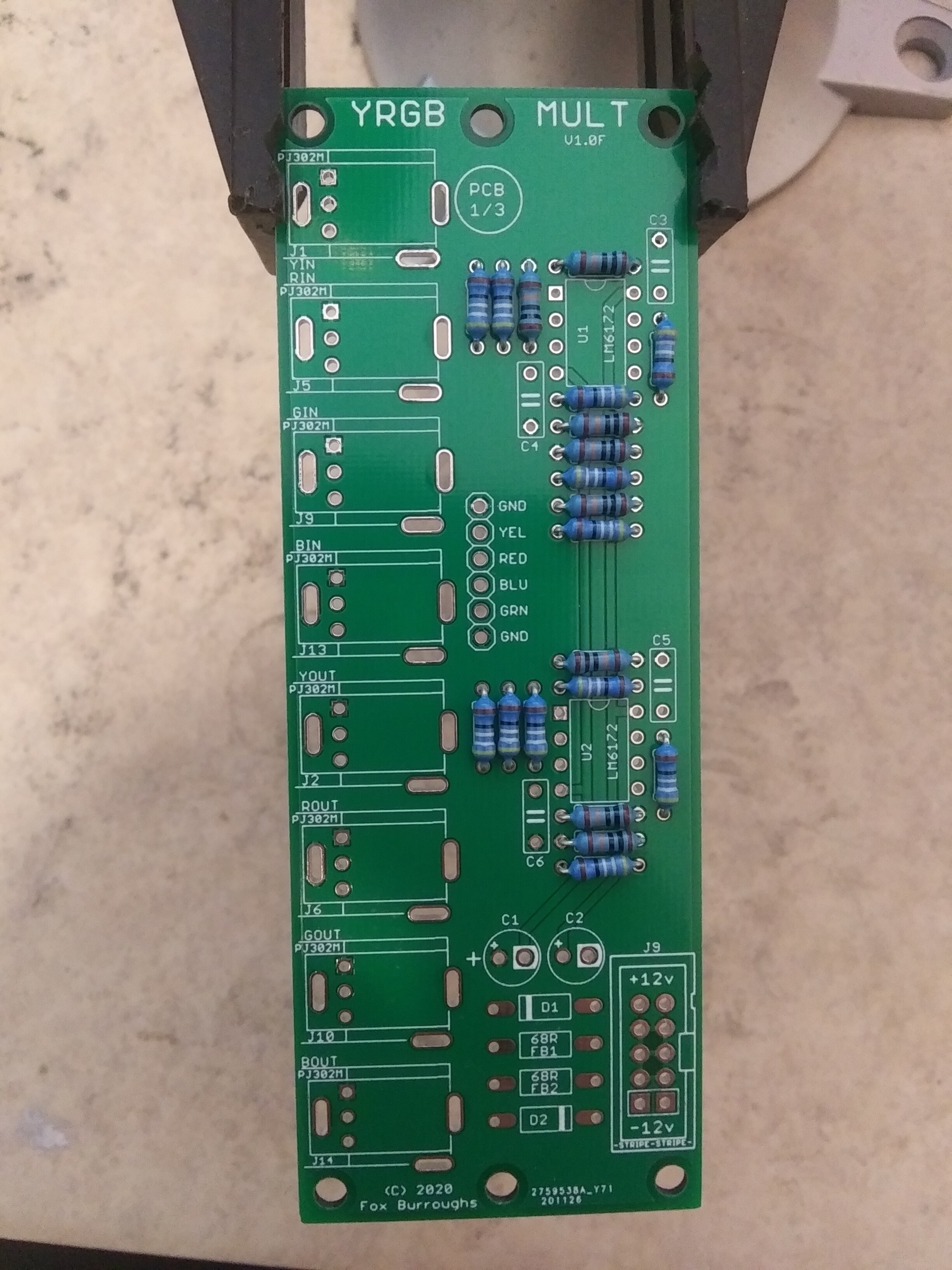

Step 2: 499R Resistors
R5 - R19, R22 - R26: 499R

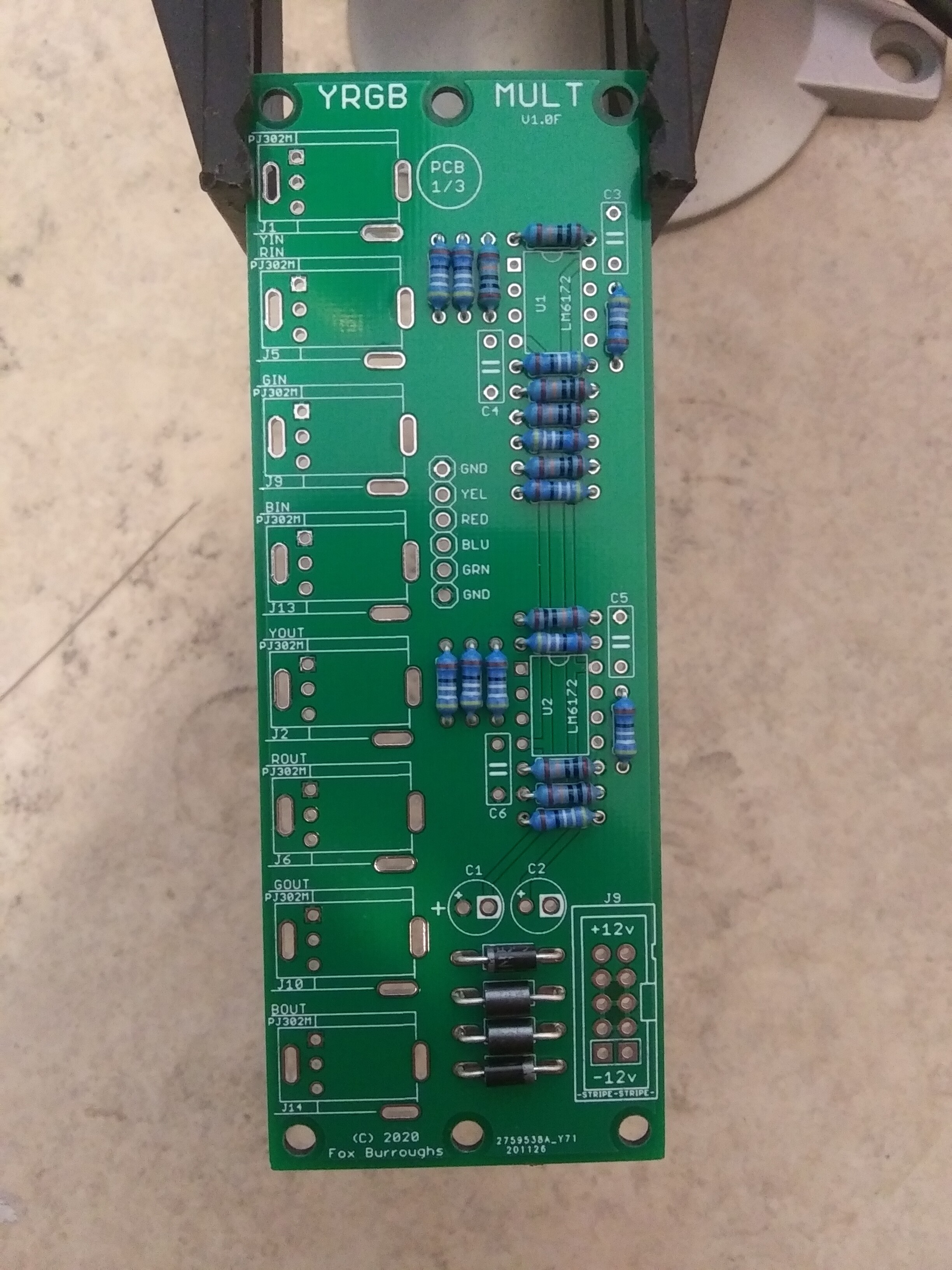

Step 3: beads, diodes
FB1, FB2: 68 Ohm @ 100MHz
D1, D2: 1N4001 (alternate 1N5819)

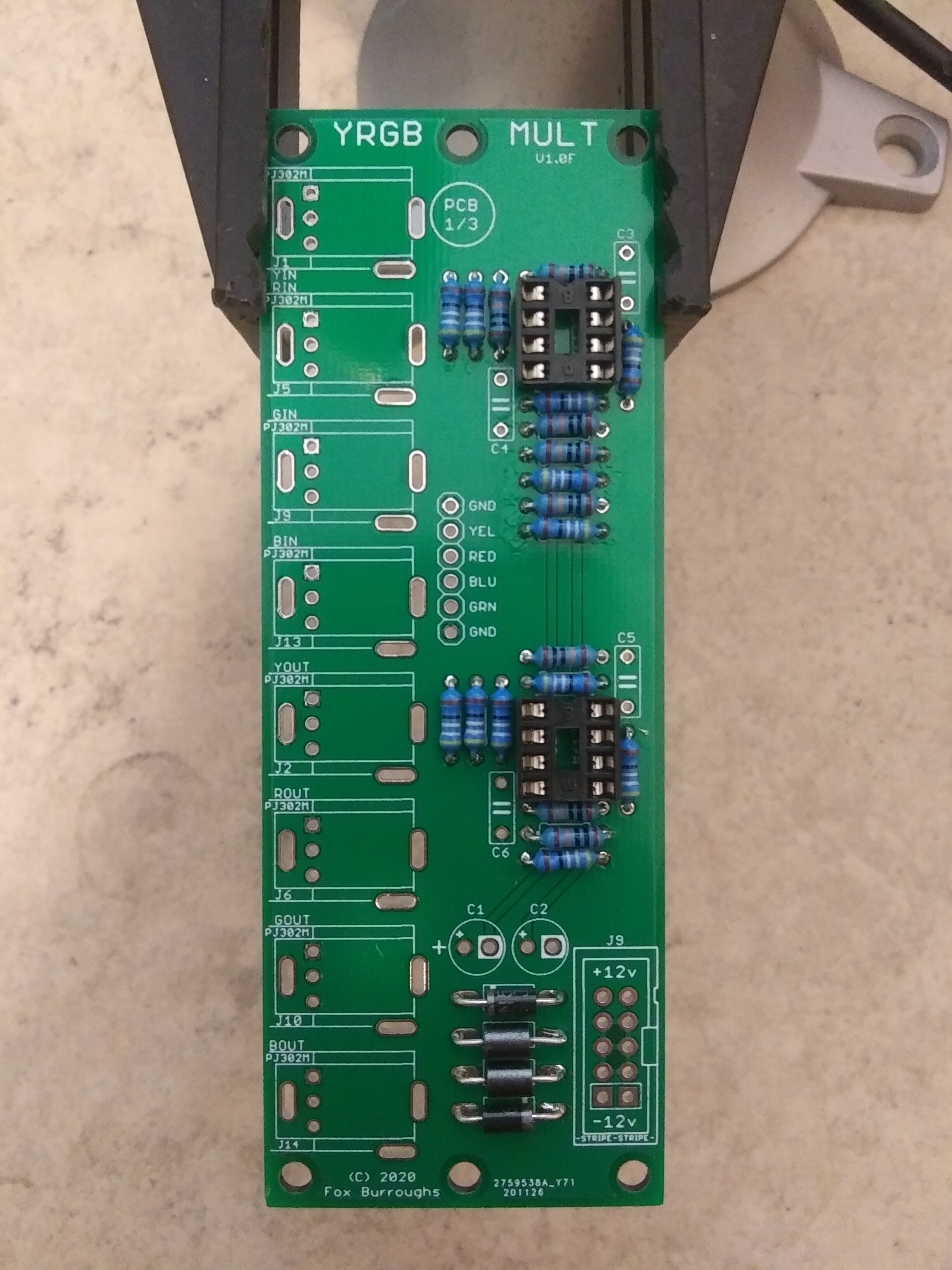

Step 4: sockets
optional: 2x 8-pin DIL sockets

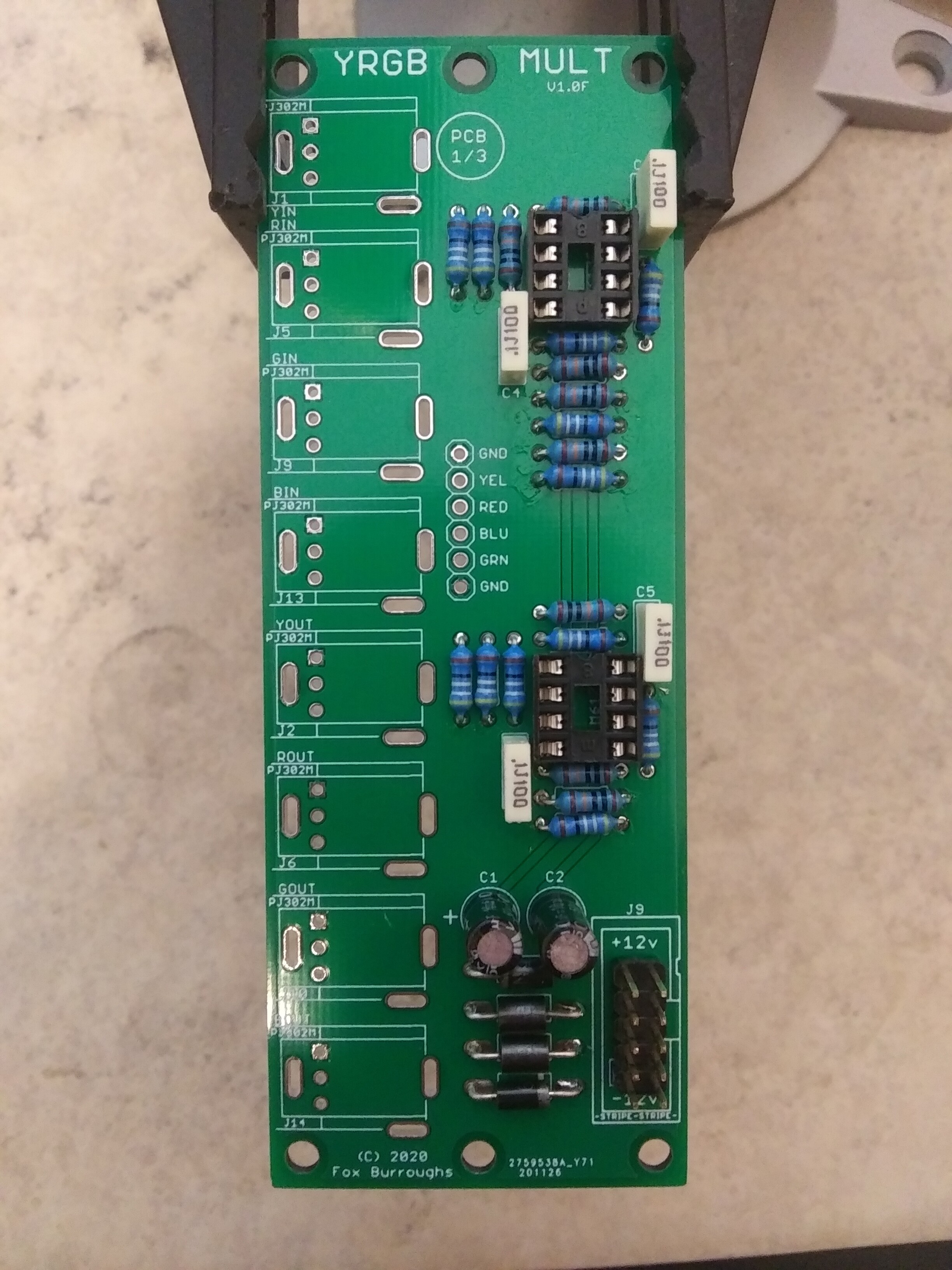

Step 5: capacitors
C3 - C6: 100nF (ceramic, MMLC or film type)

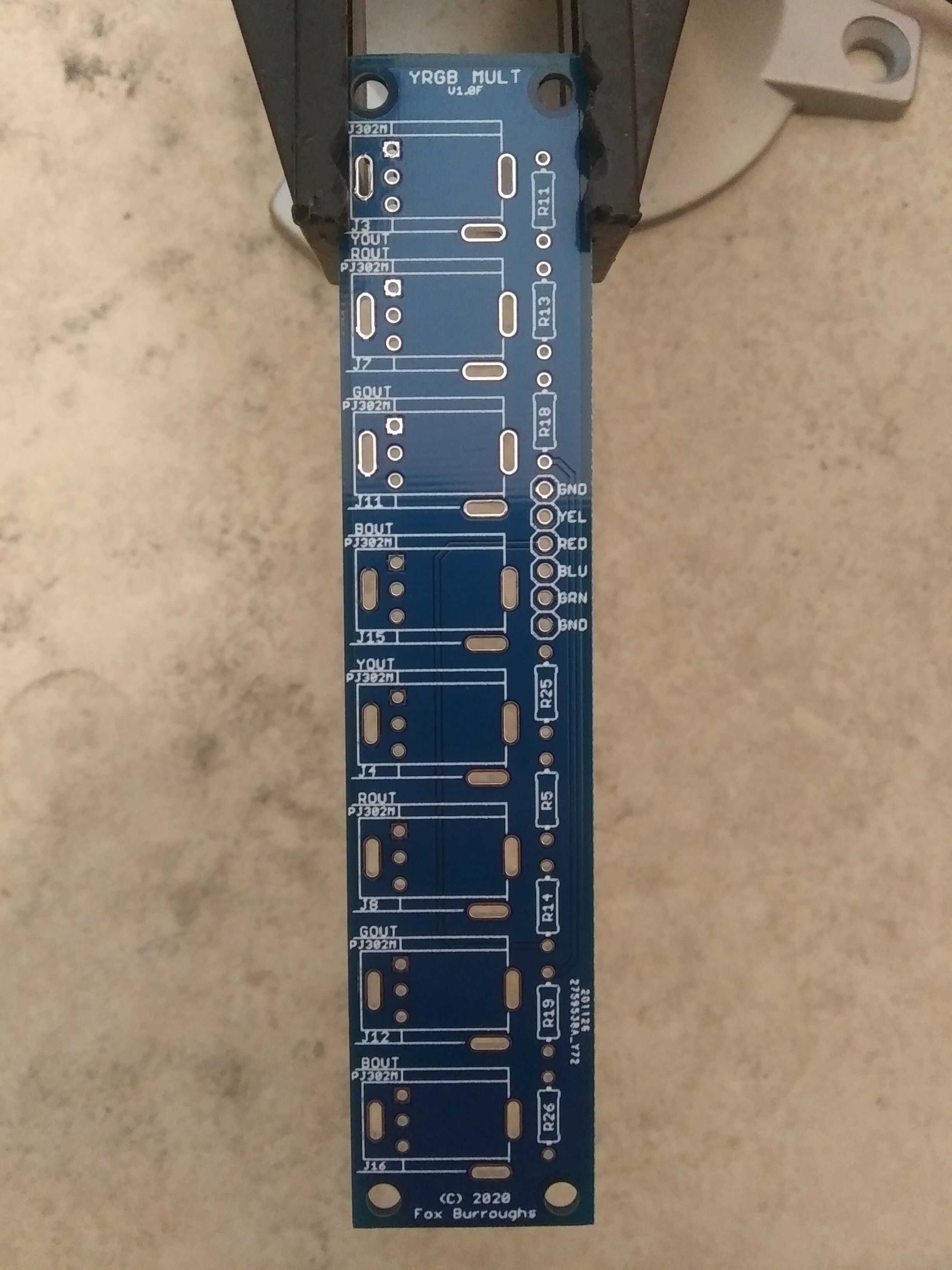

PCB 2:

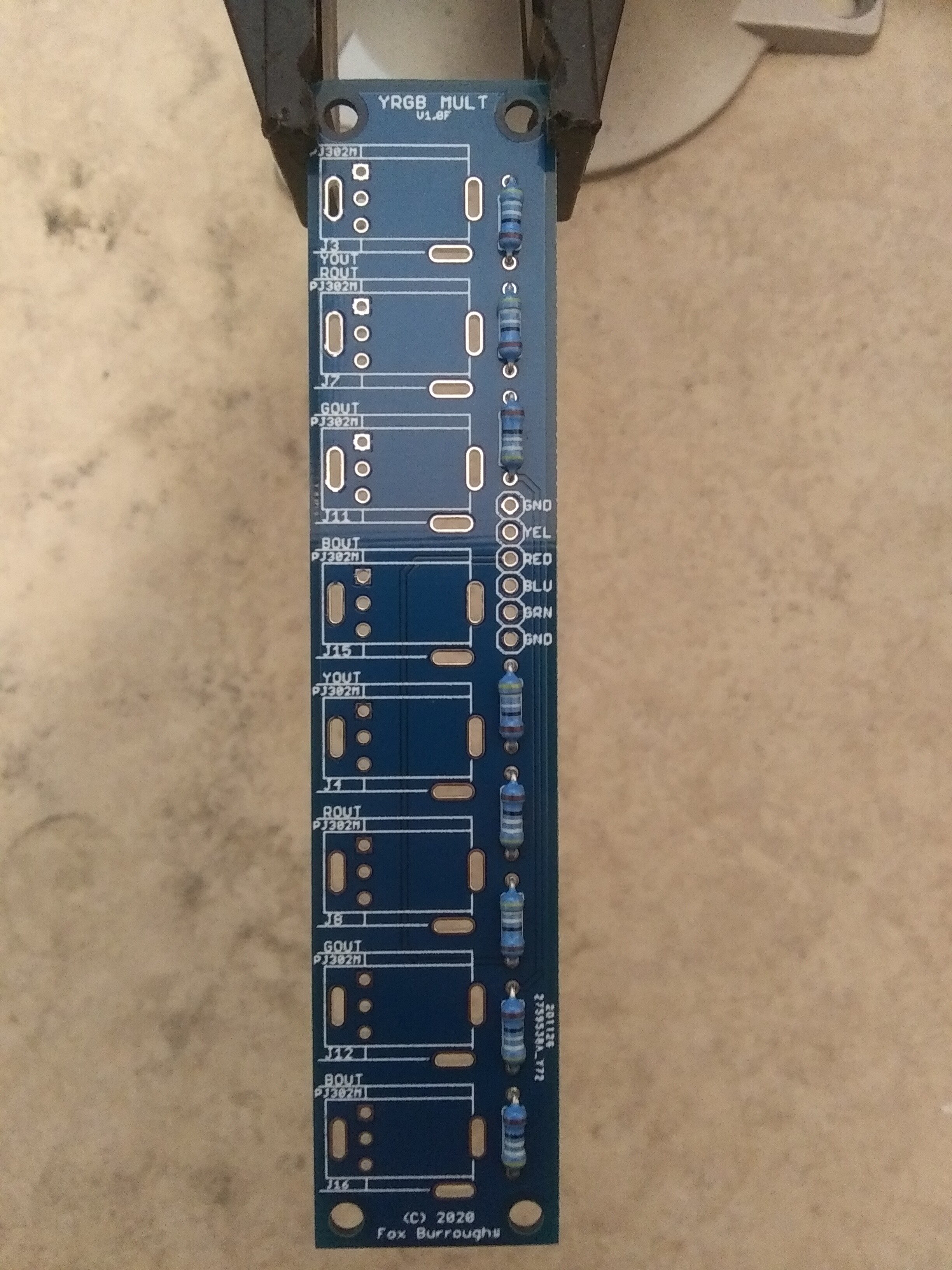

Step 6: resistors
R5, R11, R13, R14, R18, R19, R25, R26: 499Ohms
All resistors on this board are 499R

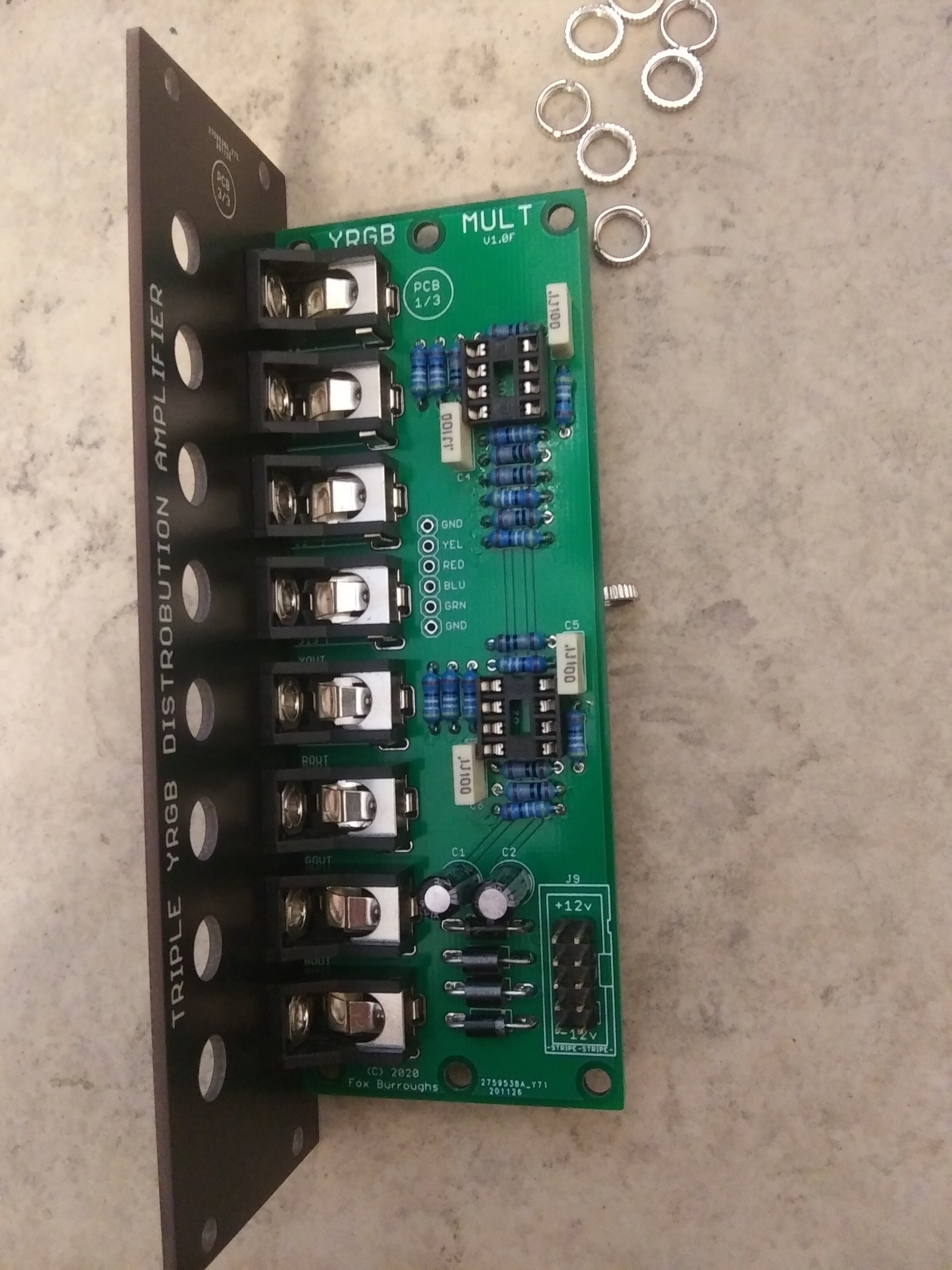

Step 7: PCB 1 jacks
Place jacks in pcb 1 (green). Do not solder.

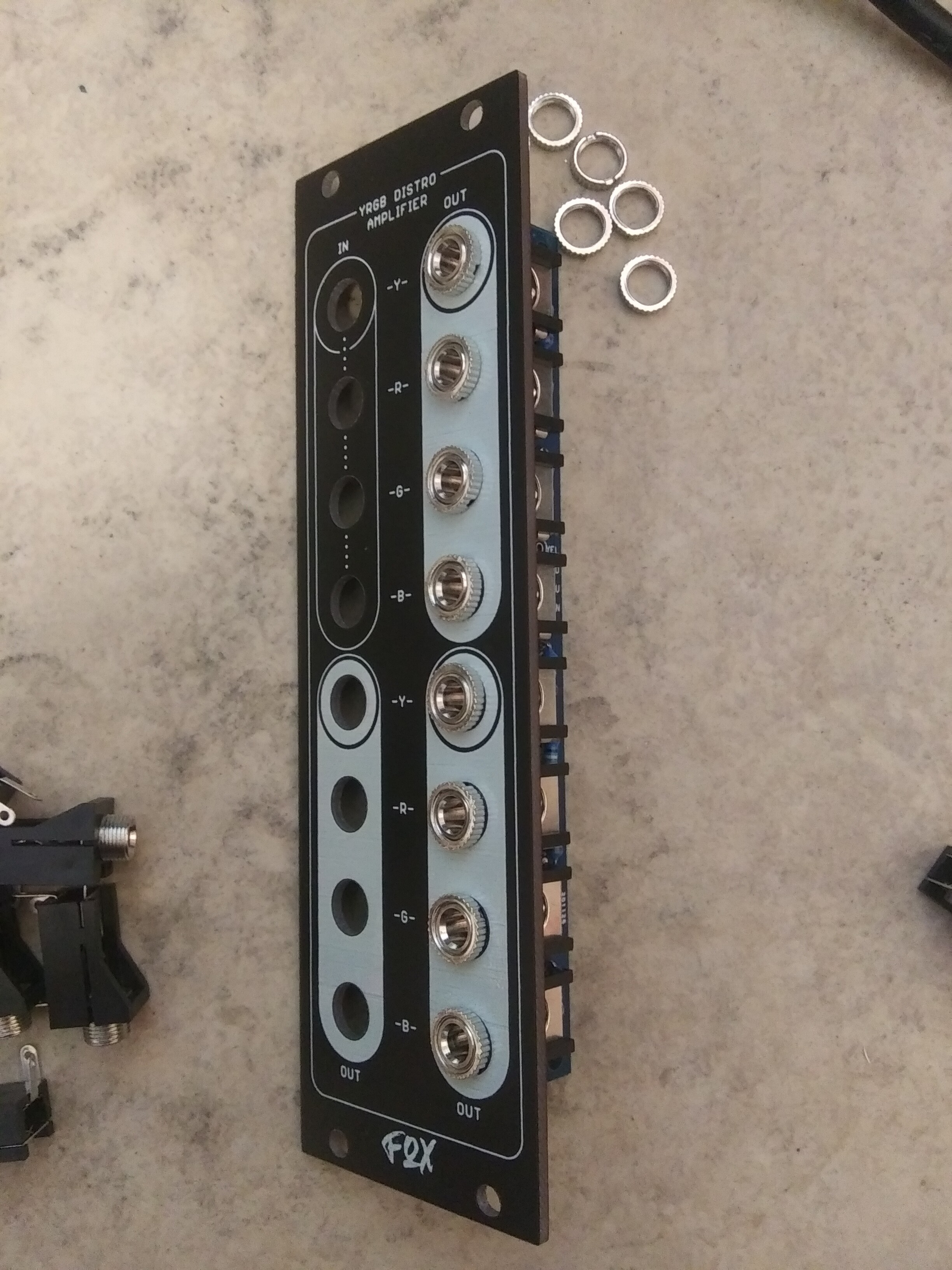

Line up faceplate and add nuts to jacks. Finger tighten and once the jacks are straight, solder jacks.
Remove faceplate before step 8.

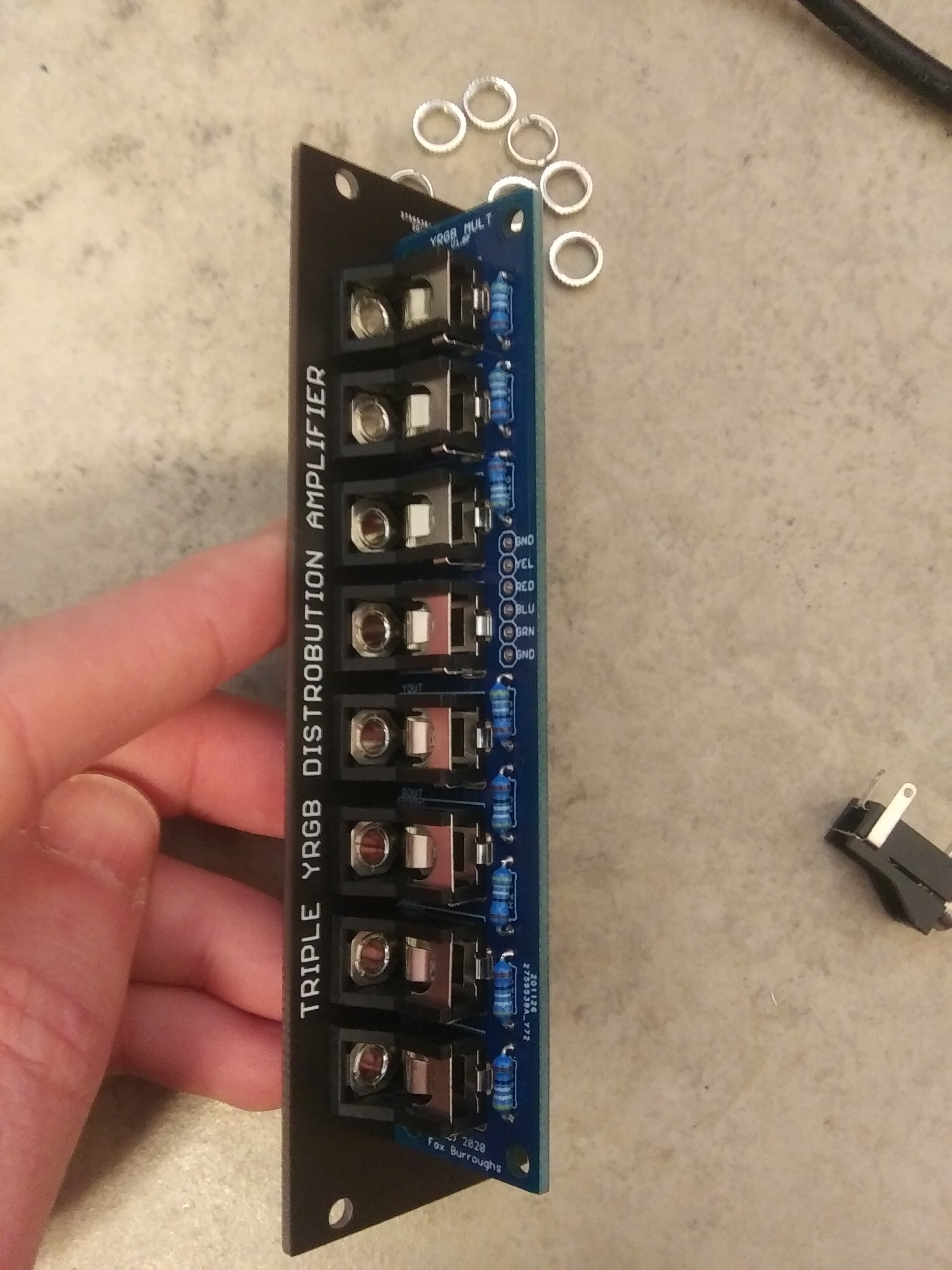

Step 8: PCB 2 jacks
Place jacks in pcb 2 (blue). Do not solder.
Line up faceplate and add nuts to jacks. Finger tighten and once the jacks are straight, solder jacks.
Place both pcbs into faceplate and tighten nuts fully.

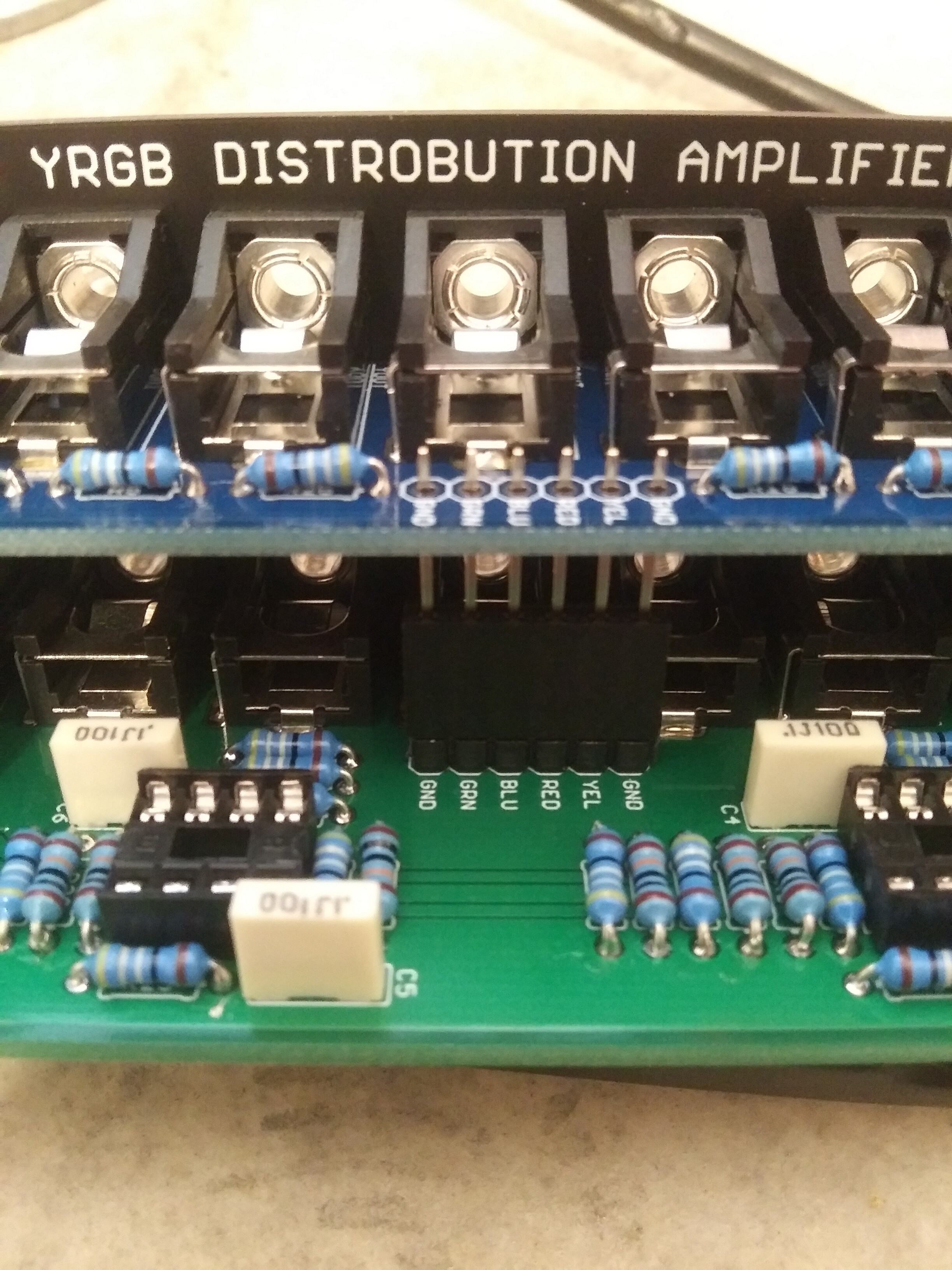

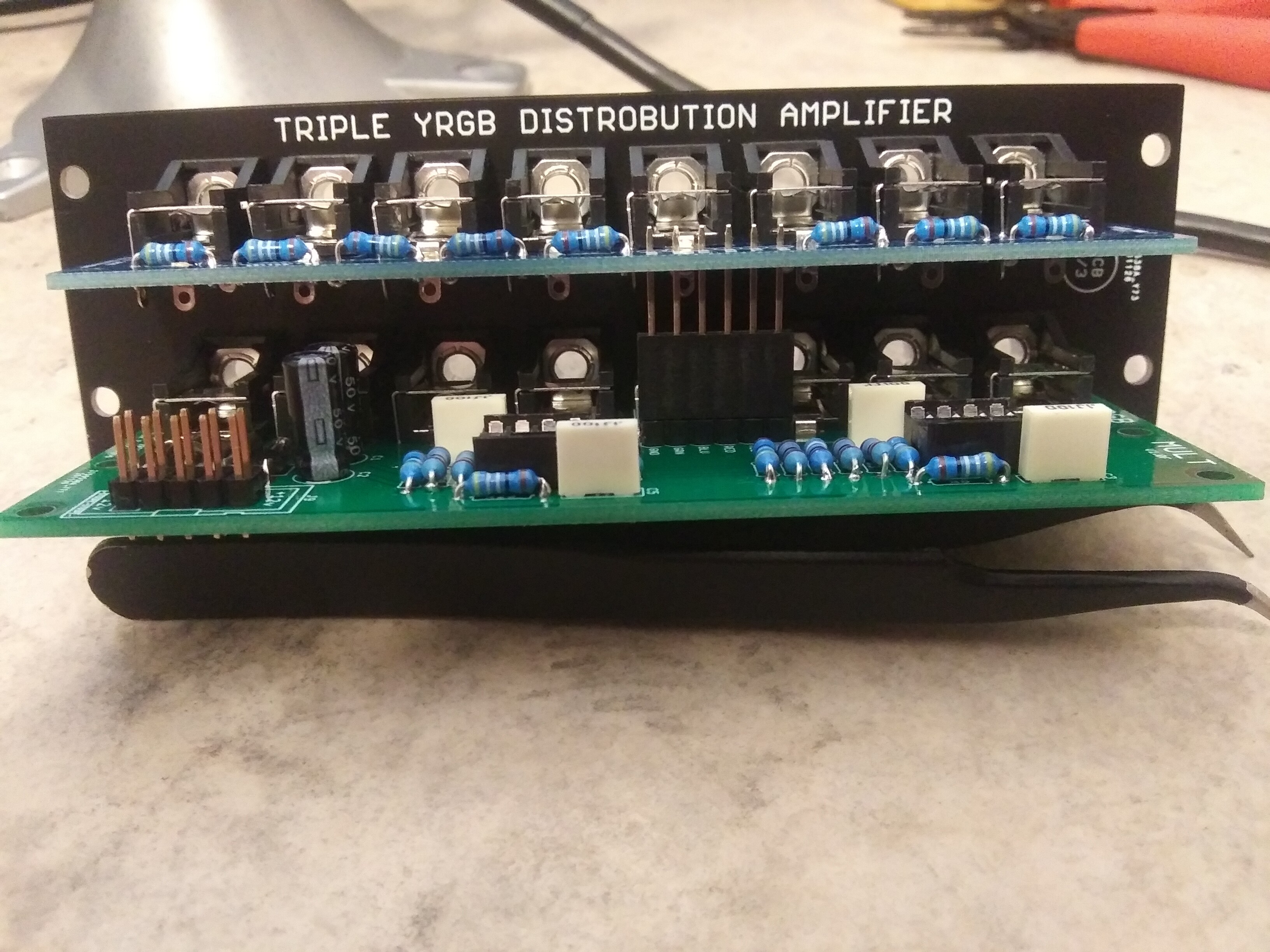

Step 9: backside header
Users may choose to use a ribbon cable or one 6-pin stackable header and one 6-pin male pin header.
Start by connecting the male and female headers together, then insert it between the boards and solder each side.
