Ha! I’m working on making one of my V1’s into a breadboard too! Great minds think alike.
I’ll have to place a V2 order with the Snow module when both are available…
2 Likes
That’s an excellent idea! You guys are clever.
1 Like
That’s awesome @rempesm
Are most or all of the passives the same as in the BOM? Now that I ask, I don’t remember seeing one but surely there is.
Did you have to do any major customising to make this work?
@joem, have you or are you planing any useful mods to create your version of this fixed breadboard setup? Just curious but I’m really tempted to try this too.
@reverselandfill, is it possible to power the experimental board from an external PSU? Like a standard 15V AC from Doepfer for example.

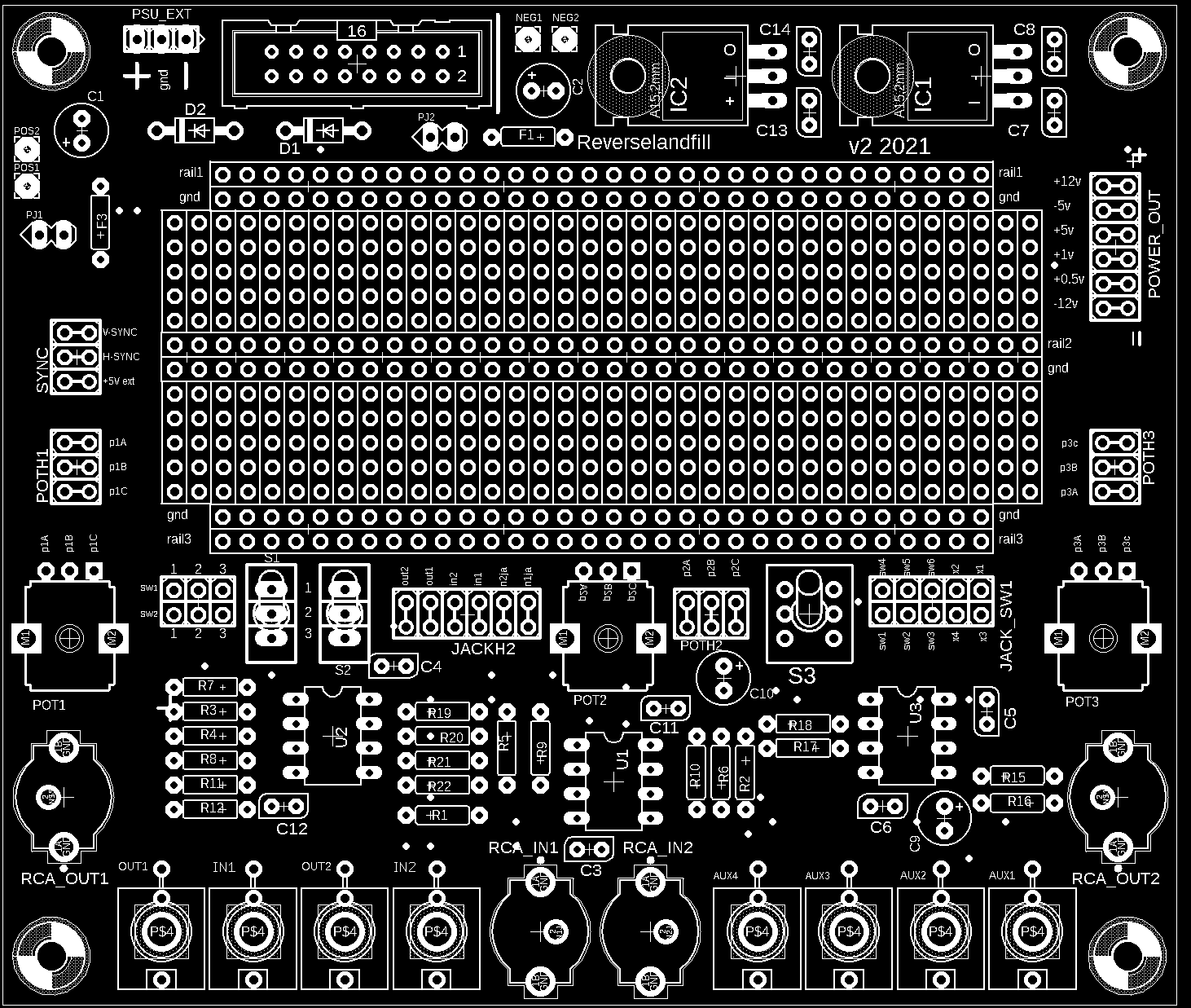

the build files are here:
The BOM is included in the buildguide, because you can build it in several ways.
you can power the VEB with a dual (eurorack or bench supply) PSU. -12 and +12
I added an external power input (left next to the 16pin header)
You cannot power it with an AC brick. This board needs DC.
If you don’t have such a powersupply, you can also use 2x 9v batteries.
(PM me if you need assistance)
2 Likes
Cheers @reverselandfill for the link & info
DC PSUs are definitely easier to source so I’m glad to see that. Is the power socket footprint on the PCB a particular standard? Ah, I’ll have a look in the build instructions & update this if the answer is there.

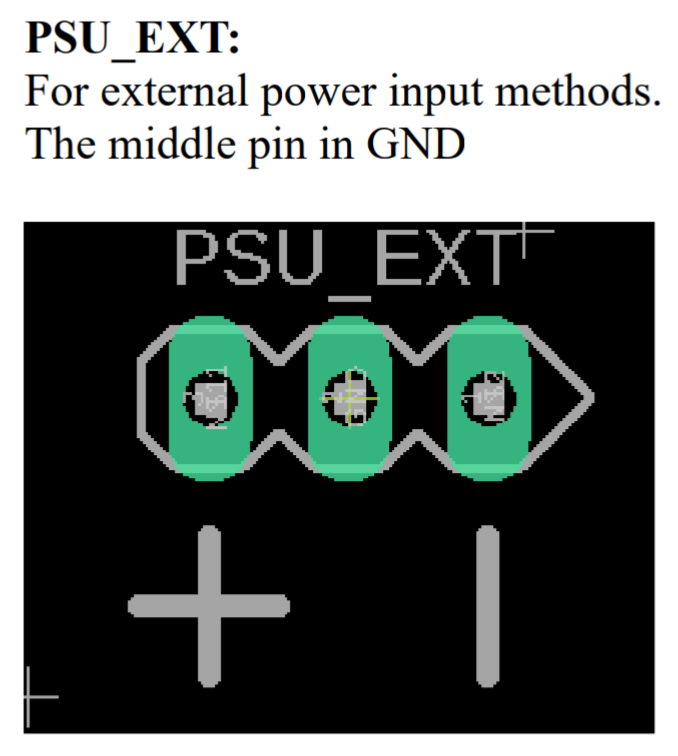

Update: there’s a nice closeup of the power input feet in the build guide but I’m not familiar with this type of power connector

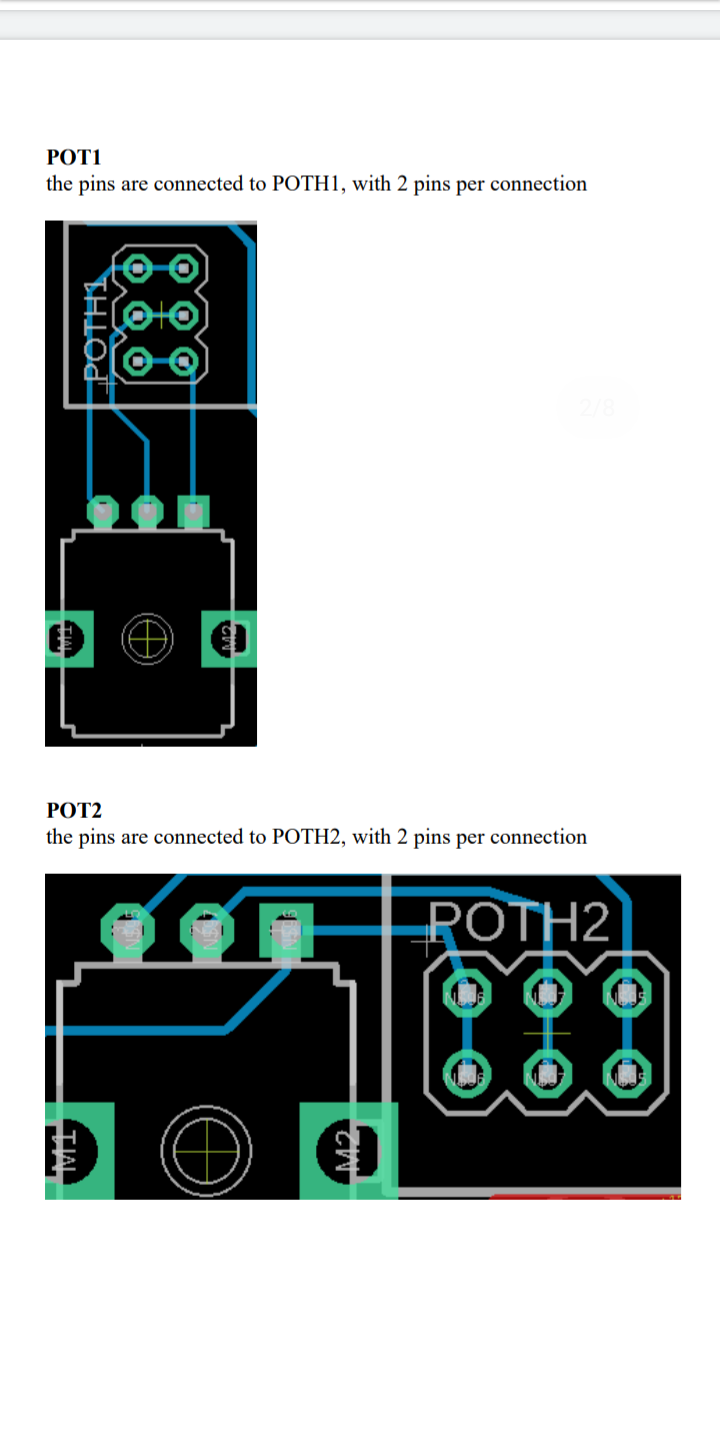

A small suggestion would be to turn the 3x2 footprint of POTH1 90 degrees to match the layout of the pot. POTH2 is perfect although to the side of course.
1 Like
What are the values of the 3x pots? Surely B10K.
No, I’m planning on doing pretty much the same thing as @rempesm – I’m just waiting for my female headers to arrive. Didn’t have enough for this kind of thing already on hand when I started.
1 Like
The pots can be whatever value you need for your circuit. Chances are if you’re building some Cadet/Castle circuits that you’ll want B10K since that’s what most (all?) of those use, but it’s entirely up to you.
1 Like
in v2 of the VEB the pot & switch headers are better aligned. (and better labeled)
I mainly use 10k pots.
2 Likes

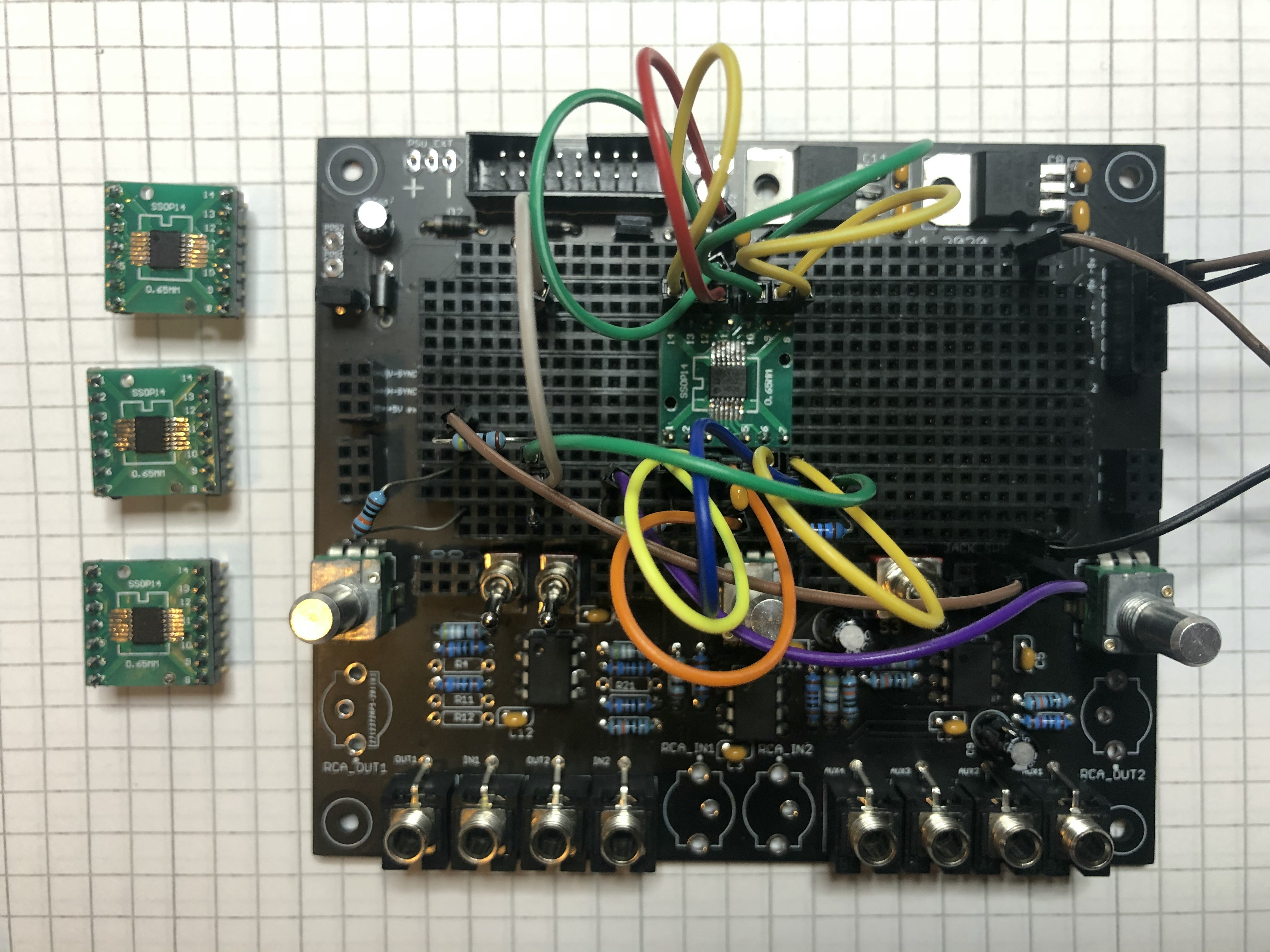

Just double checking my work on these DIP adaptor boards for ADA4851-4s with the buffer circuit on LZX’s Github. The VEB makes tasks like this feel less annoying to start. Thanks again @reverselandfill
5 Likes
I see this Polarised cap between opamps non inverting input and gnd in the unity gain amplifiers for +1v and 0.5v.
What are they there for? Is it extra noise protection? Or do they stabilize the opamp in some way…?
2 Likes
It acts as a First-Order low pass filter.
3 Likes
Are these boards still being made?
1 Like
Nice! Yea I checked with Thonk and it looked like they were sold out which is why I was askin. Will definitely have to snag one!
1 Like
you can buy one (or a pack) directly from me (with some forum discount)
2 Likes
