Still images (for processing via Memory palace)

so with some new info about the memory palace I thought now is the time to start the still image discussion

first and most importantly
I’m sure you have already all thought about it
what is the first still image you want to process via the internal storage on the memory palace?

I’ll start off by saying Lisa frank will be my number one
LF
trapper keeper feedback here I come

so beyond that I would love to see eventually (not sure how best to achieve this other than just sharing them here) all of the participants on this forum submitting a folder of images specially selected by them and exported with the proper settings.

a place to start for newcomers
a way to get to know each other
growing the community

would anyone like to participate?

8 Likes

Love it!!
The zip files in the firmware repositories contain some examples:

Currently I’m working on building more robust UI for still image selection and loading. The units are all shipping with a 4GB SD card, which is enough for thousands of images, but currently only the first 32 subfolders of the “stills” directory are loaded.

There’s also going to be an animation and motion graphics mode implementation, that allows you to scrub thru your selected stills folder with the Delay parameter, for pseudo-video sampler capabilities, and I’d like to implement a snapshot function as well, that can save the current buffer to a new still (for further loading and processing.) Additionally, I’d like to add a scripting function for algorithmically generated stills (like ramps and other gradient patterns) which are generated at run time.

This area is going to be a WIP progress for a while, it’s going to be fun to see it develop.

11 Likes

I’ve been experimenting with alpha transparent PNGs and have noticed some odd effects. I’m getting these white bands around the transparent PNGs that I wouldn’t expect to be there, any ideas? Here’s an example I uploaded to vimeo.

I’m cycling between an alpha transparent, white background and black background variant of the same image (pressing clear after each new image) to show the different behavior in the memory palace. I can provide a zip of the pngs if that helps.

3 Likes

Can you show me a screenshot that clearly highlights the artifacts you’re talking about?
What software are you using to generate the PNGs and how are you saving them?
Do the bands go away if you add a little softness to the keyer?
Have you tried the “Single” threshold mode with the alpha key? Could it be related to window size?
When cycling from alpha and white/black backgrounds, are you changing from alpha and luma key modes respectively?

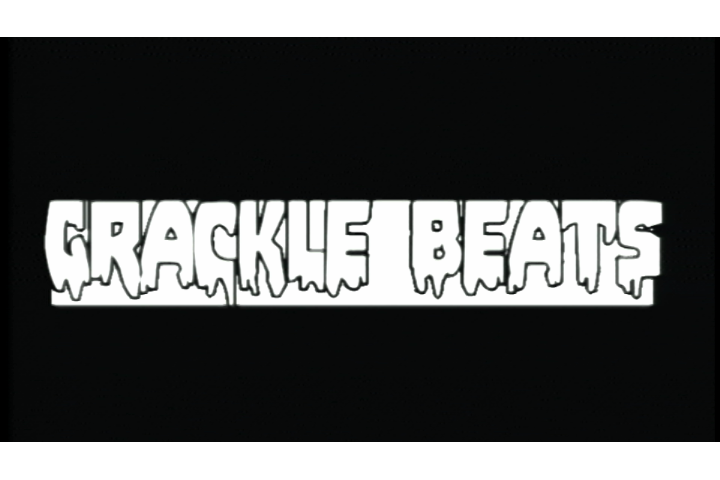

Sure, here are a couple examples.

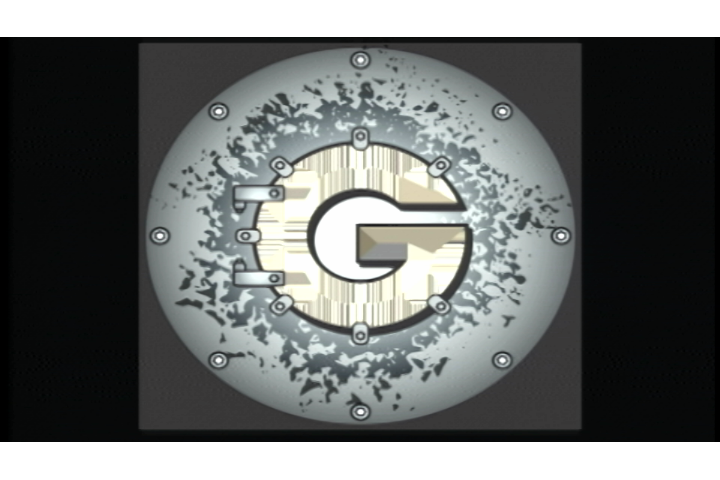

A white box seems to get rendered around the shape.

Here are the alpha transparent pngs

I’ll experiment with softness later today and the other suggestions when I get a chance.

I’m using photoshop and just creating a layer for the logo and leaving the background as transparent. Exporting to PNG via the normal export, tried using SRGB and without, seems to have the same effect.

1 Like

@bsarps Is the key mode on Memory Palace set to “Alpha”?

2 Likes

Yes it is. I’ve tried Luma and Chroma as well and they all seem to do the same thing. I can send you the .psd if you want to take a look.

Have you tried the “Single” mode for keyer threshold?

4 Likes

Thanks, playing with the alpha key and single modes did the trick. I only really notice the box when the center slider is below 50%.

2 Likes

Awesome, yeah it’s a weird use case when thinking of window keying an alpha layer! If it’s a hard mask you get more of an on/off behavior. We can probably find ways to make that more intuitive as we move along.

4 Likes

hello,
i am having some trouble loading some Jpegs into the memory palace.

i created a folder with opart images sized down in Photoshop.

i size them down to 720x480 pixels for NTSC/480i

i create thumbnails for them and put them in a separate folder.

i use the correct procedure to connect the memory palace to my windows laptop and it shows up on my laptop.

i load the folder on memory palace, eject the memory palace.

when i go to the memory palace and go to the stills i see the folder but the images dont load up and i do not see the thumbnail.

any help would be great!

Compare the images you made to the ones in the default folders to make sure they are the same size and located in the same folders (both source and thumbnail). Sounds like you’re doing things correctly.

so i compared the images that came with the memory palace for NTSC and they are 720 x 486 instead of 720 x 480.

once i adjusted the images to that size they appeared and it works.
l

2 Likes

Glad to hear it! On the next update I’ll make sure both sizes are supported.

How does one change the keyer threshold to “single” mode in v19? Trying to get my MP to read the alpha channel of some pngs, but it’s showing up as a grey box around the image.

1 Like

V19 behaves differently in this case (no “single” mode).
You might need to experiment with your export settings. In Gimp, when exporting an image with an RGB Alpha layer, I select “save background color” and “save color values from transparent pixels”. This produces an image with a transparent alpha layer that works perfectly with Memory Palace.

2 Likes

Neat, haven’t been able to figure out something similar to what you did in Gimp in photoshop. Curious if anyone else does. Maybe we just should use Gimp.
I did make a transparent 720x480 image with only one layer in Photoshop and saved as png as the video tutorial showed.
I was able to use the alpha layer, but bounding boxes would appear in the majority of alpha keyer settings.

By the way, a tip that making “thumb” thumbnails folder is super easy if you use this method to batch resize to 128x96


I bet Gimp or something similar can do this too though.

1 Like

@Johnnywoods I followed your video for making a transparent png in Photoshop btw. Has anything changed about how you need to make or save them for v19 firmware? 486 seems to be the proper NTSC Memory Palace vertical resolution is one thing I noticed that is different, but are 720x480 NTSC images still interpreted to fill frame anyways @creatorlars?
(thanks to @Genlok in this thread: Hubble image pack for Memory Palace) @alexpelly

@Dr_Rek I got it to work by inverting the width on my MP, but not sure if it’s actually working or just keying out the grey. The grey box comes back very easily if I move around the width slider, but I managed to work with it. I’m also using Photoshop. Can you link the Johnny Woods Photoshop video you found?

1 Like
