[ORDER] Martin Devices - Soft Key


Soft Key

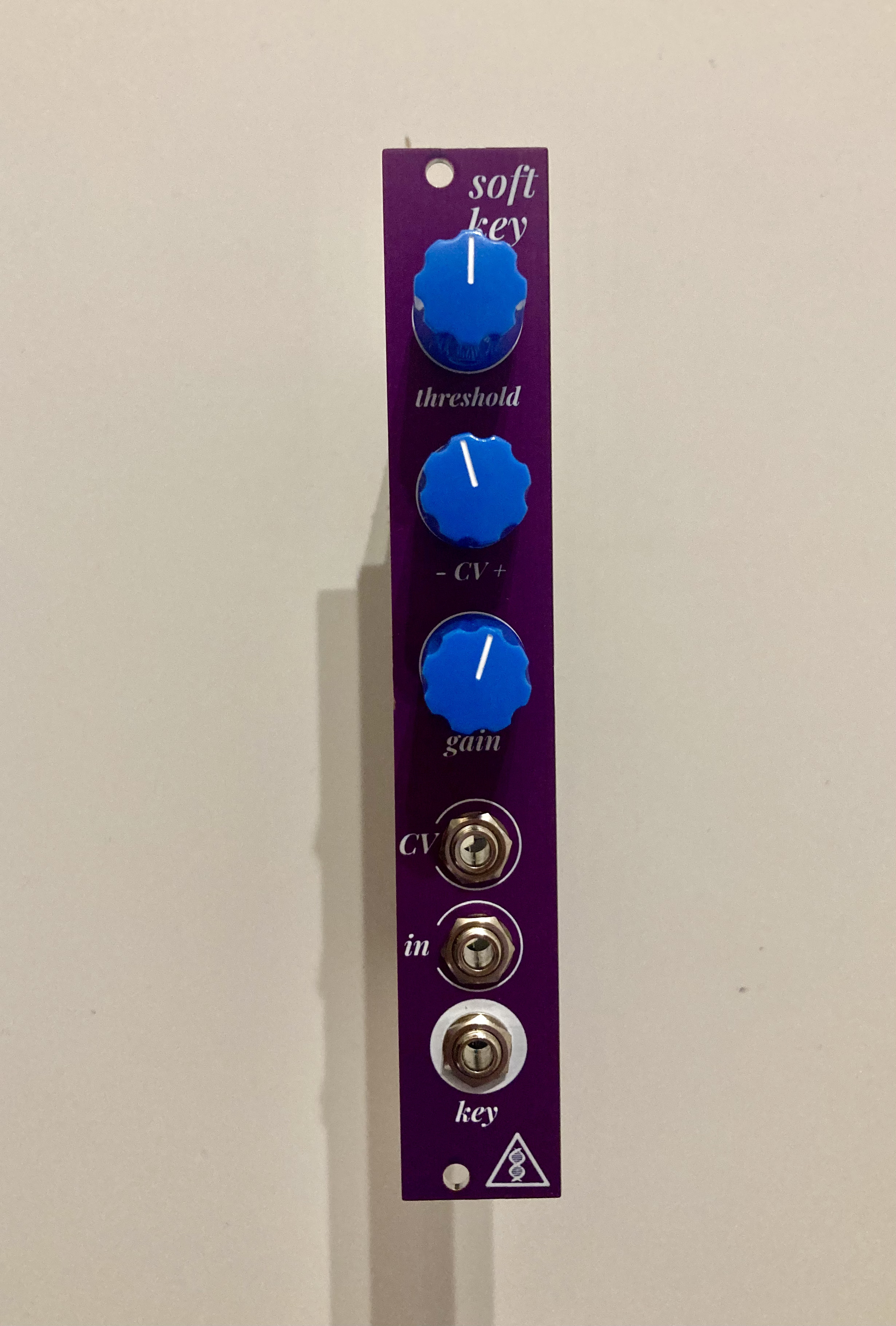

Pleased to finally announce orders for my Soft Key module! The soft key is a high gain voltage processor and precision clipper. The variable gain and clipping stage allows the module to act like a normal processor at low gain and at high gain the module will hard clip your input signal precisely between 0-1V.

The threshold control allows the input signal to be DC offset, controlling at what point the signal clips. The CV input allows an external signal to act as the threshold, and can be attenuverted with the CV control.

The gain control gives a range of x0 to x50, effectively attenuation up to hard clipping, but the trimpot on the board can be adjusted to increase the maximum gain to taste, up to x100.

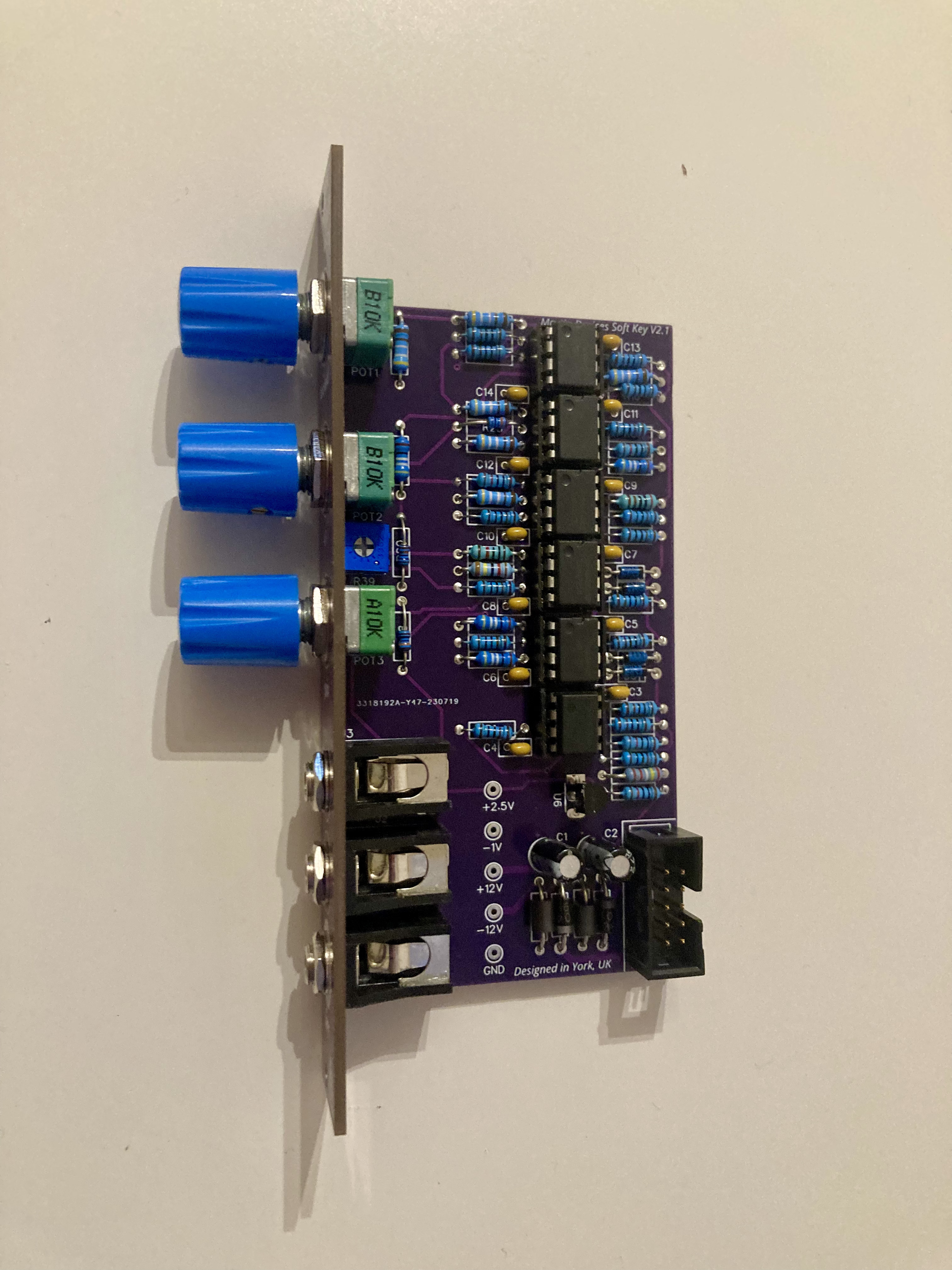

The PCB is a four layer board designed to impart minimal noise when using high gain settings, but just as with any high gain circuit, noise on your signal will be amplified just the same as your signal!

This module is useful for signal processing, contrast control, shape generation and pairing with a crossfader to create a keyer.

  • 45mA +12V
  • 40mA -12V
  • 4HP wide
  • 52mm deep

BOM - https://github.com/martindevices/Martin-Devices/blob/main/Soft%20Key%20/BOM_Soft%20Key_2023-07-29.csv

Prices:

PCB and Front Panel set: £20 / $26 + delivery from the UK
Built Module: £120 / $155 + delivery from the UK
DIY Kit: £110 / £140 + delivery from the UK

Payment via Paypal or BACS, any paypal fees covered by buyer

Orders:

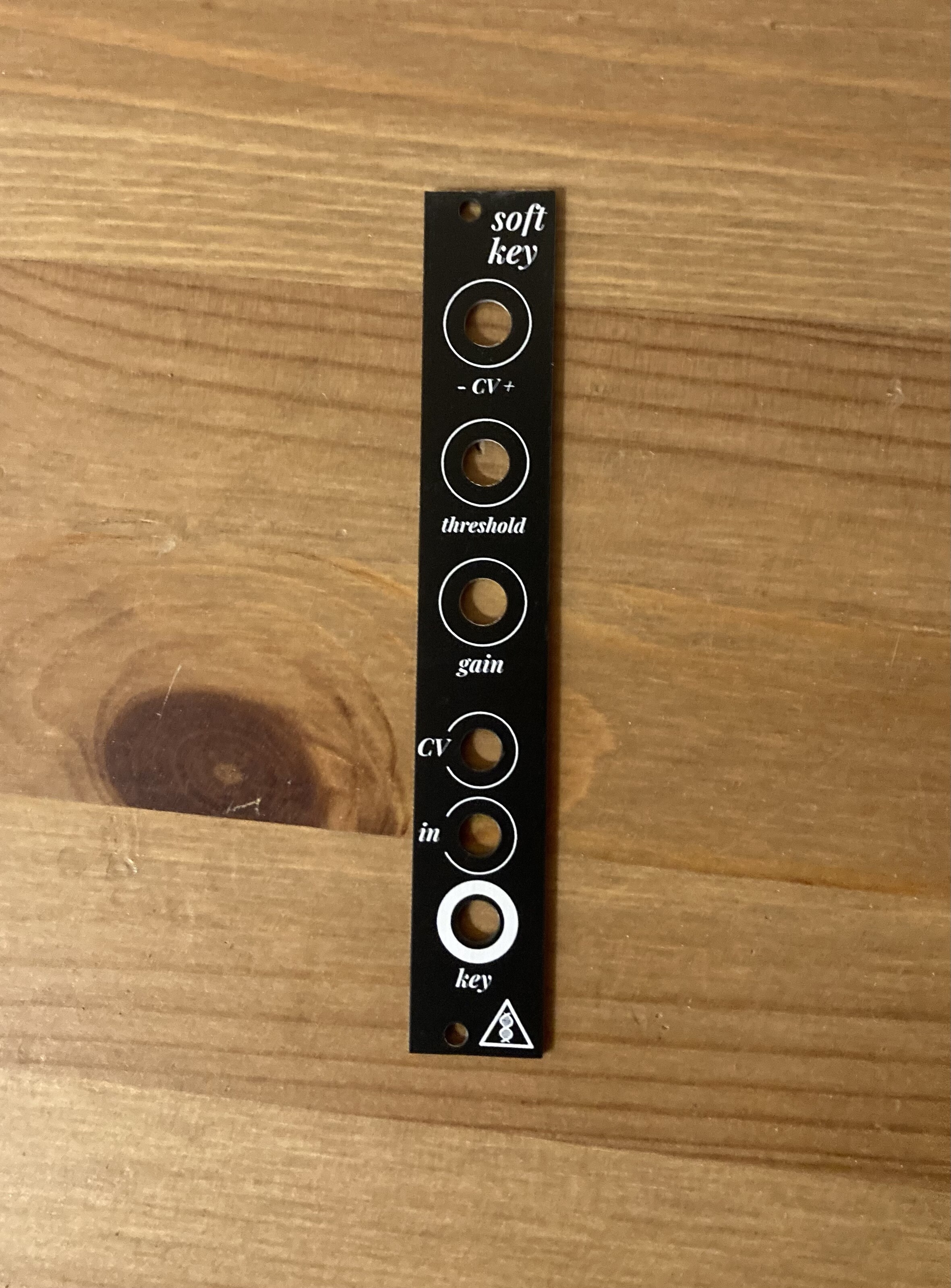

Either comment below or DM me for your order. Happy to do a run of black panels too if purple isn’t your thang

P.S. I just wanted to say a huge thank you to everyone who has provided advice and shared knowledge during the development, I’ve learnt a huge amount and I’m so excited to finally release a module!
