MemPal > Blackmagic DVI to SDI adapter?

Has anyone successfully converted MemPal’s DVI output to SDI via one of these Blackmagic adapters?

https://www.bhphotovideo.com/c/product/620820-REG/Blackmagic_Design_HDLEXT_DVI_HDLEXT_DVI_DVI_Extender.html

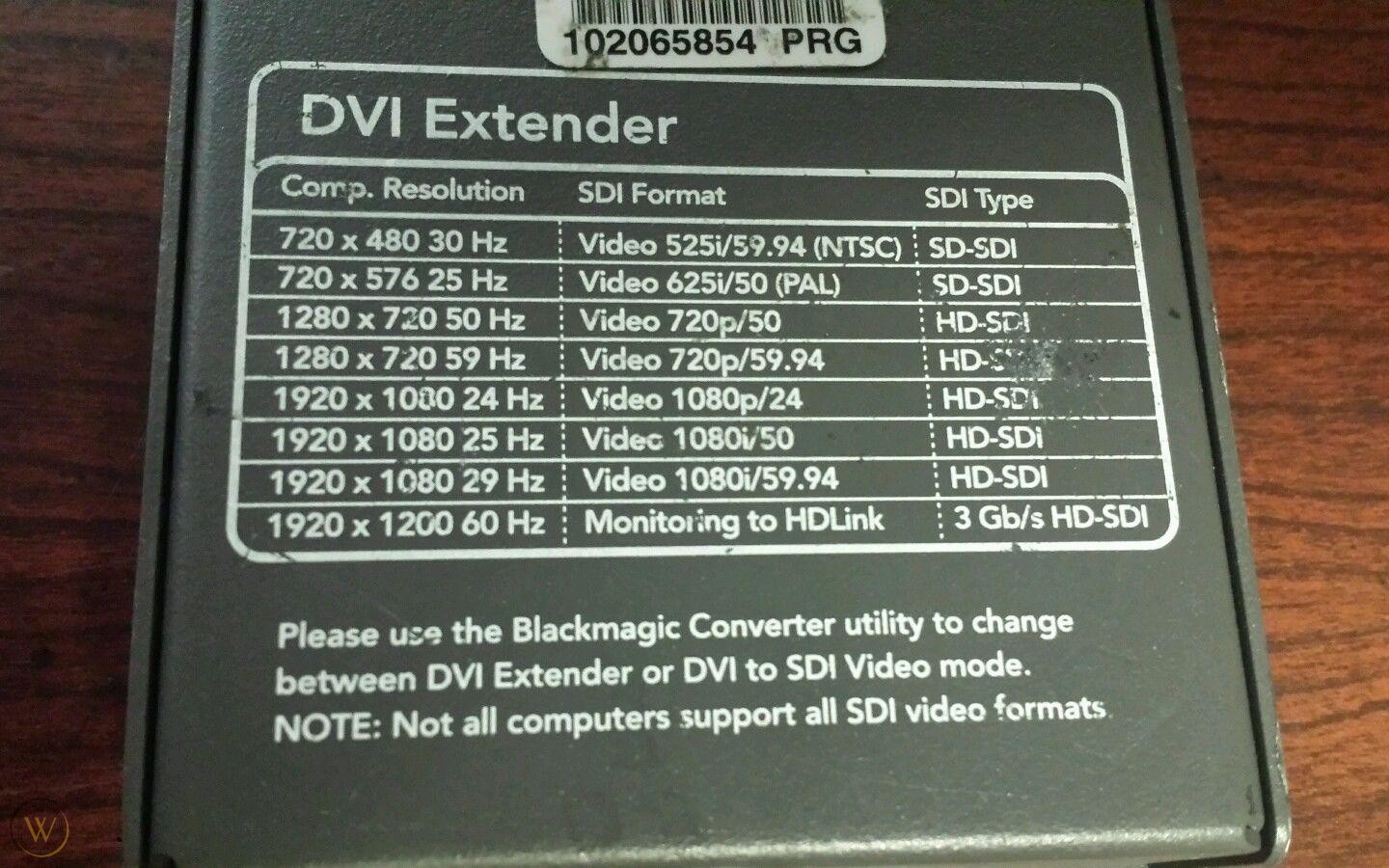

The only thing that makes me wonder is that 525/625p isn’t listed as a supported format, only interlaced versions (see image):

Thanks for any help :pray:

Isn’t the 480p dvi what will be coming out of Mempal (listed on the left under Comp. Resolution)? Those damn Blackmagic products can be so finicky and format specific or they won’t work……

Sometimes you need to plug those converters into a computer via the mini usb connector and set them up in the BMD converter software to initially get them ready, did you try that?

2 Likes

Thanks for the reply. I don’t actually have one yet. That Matrox looks pretty handy though…
