RCA Sync Adapter Panel

Has anyone made a simple 4 hp panel for repatching internal sync connections without opening the case, or for patching from case to case? Also has anyone identified a passthrough RCA socket connector with sockets on both sides, for panel mounting?

I believe Syntonie VU001 Quad Distribution module has a rear mounted RCA socket for sync distribution. Syntonie - Video DIY

This is probably the cleanest DIY solution available but it wouldn’t be difficult to drill a blank panel and attach a panel mount RCA connector yourself!

2 Likes

Yes. This is very simple and easy to do with a 4hp blank panel and some rca bulkheads from amazon. Dril a hole in the blank and screw on the bulkhead

1 Like

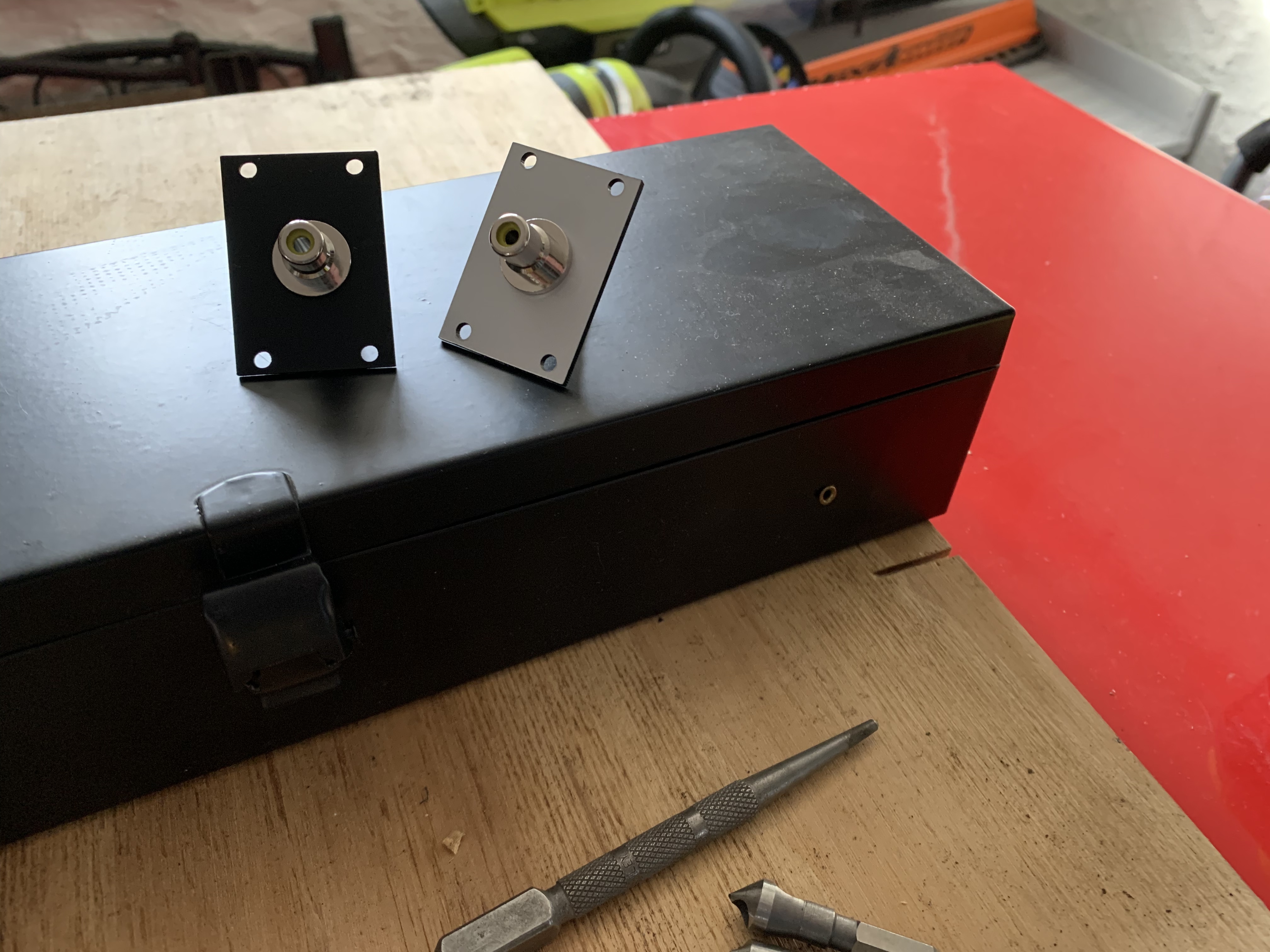

PulpLogic 1U/6hp blanks and Switchcraft BPJJ04X bulkhead jacks.

6 Likes

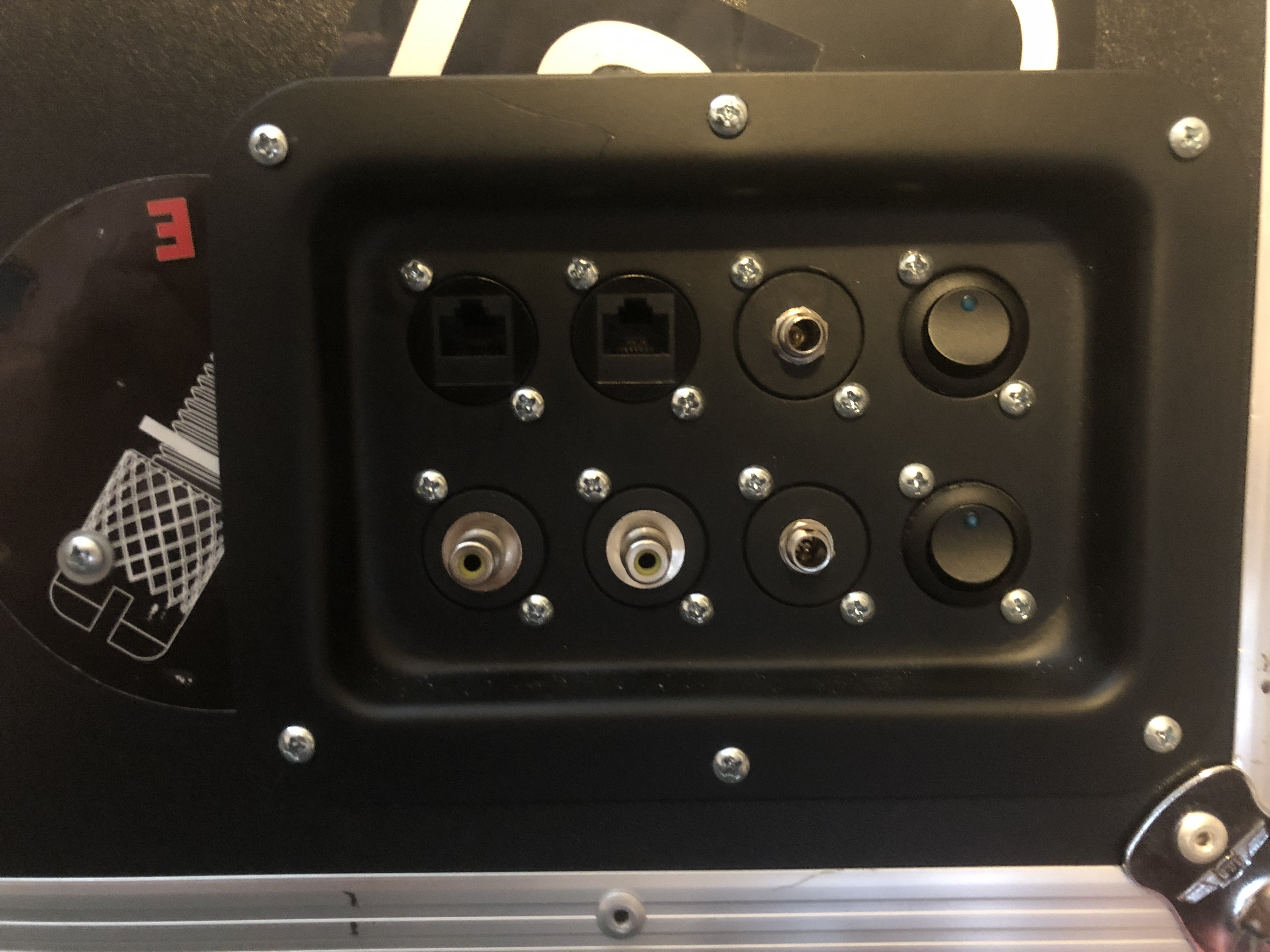

You could also install a recessed dish panel with D panel mounts into your case like this:

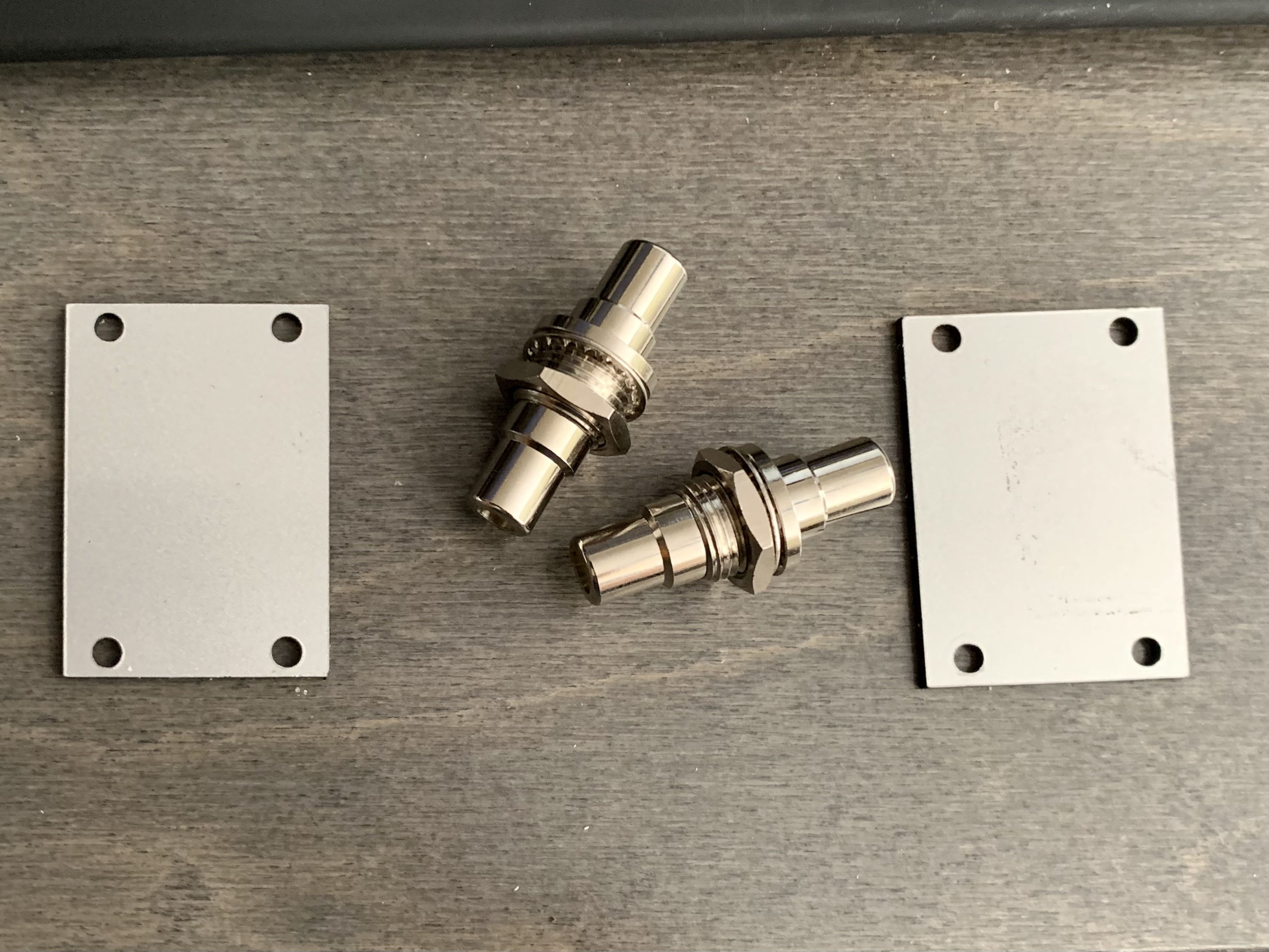

I used these for passthrough RCA connectors:

I drilled out some D panel mount blanks and screwed them in.

The RJ45 (8P8C?) connectors are currently distributing 14 pin sync but maybe H/V power bus sync too, I’m figuring it out. It doesn’t seem that odd/even or burst are actually used on any modules, apart from odd/even being buffered as a frame sync output on Cadet I.

4 Likes

Wow! Someone knows that the connector commonly called an RJ45 is actually an 8p8c! I’ve given up trying to fight that battle (as it seems you have as well)

I have a couple of these video sync panels. Robb seems to take long breaks from his shop, but message him and see what’s up.

1 Like

I have also used the ProCraft ones to transfer sync between cases, but they are unnecessarily tall on both sides.

1 Like
