I’ve been trying to get my setup working with the new HD components and as usual the change doesn’t go without struggle.

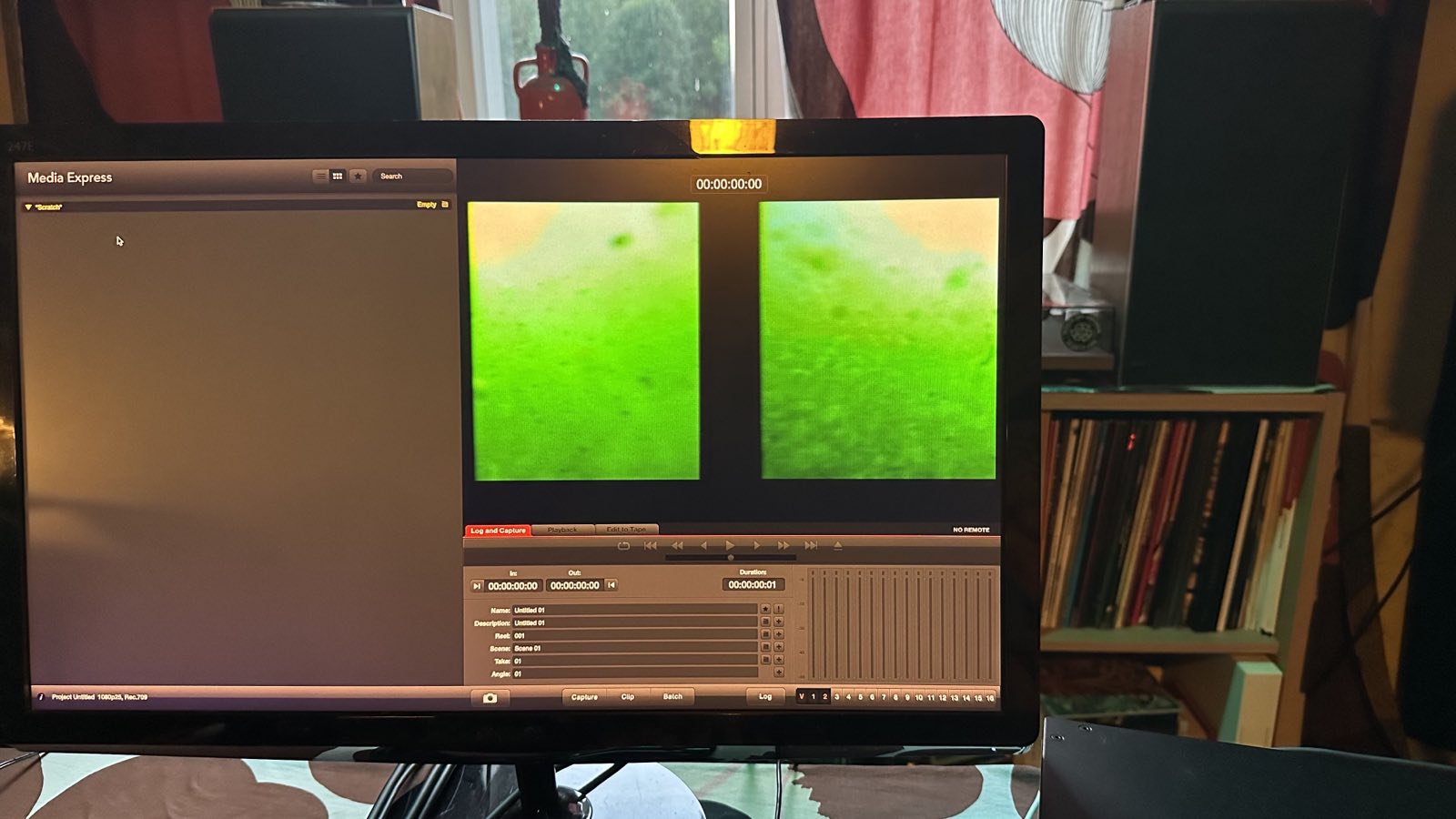

The TBC2, ESG3, BMD Desktop Video and Media Express are all set to capture/operate in 1080p 25fps and by setting it up like this the picture gets divided in two and it’s wiggling like a mofo.
This issue only presents itself in these settings and my only issue with it really is the astronomical file sizes.
I’m wondering whether this is bcs of the Ultrastudio HD Mini or the ESG3.
Anyhow, some help wpuld be greatly appreciated.

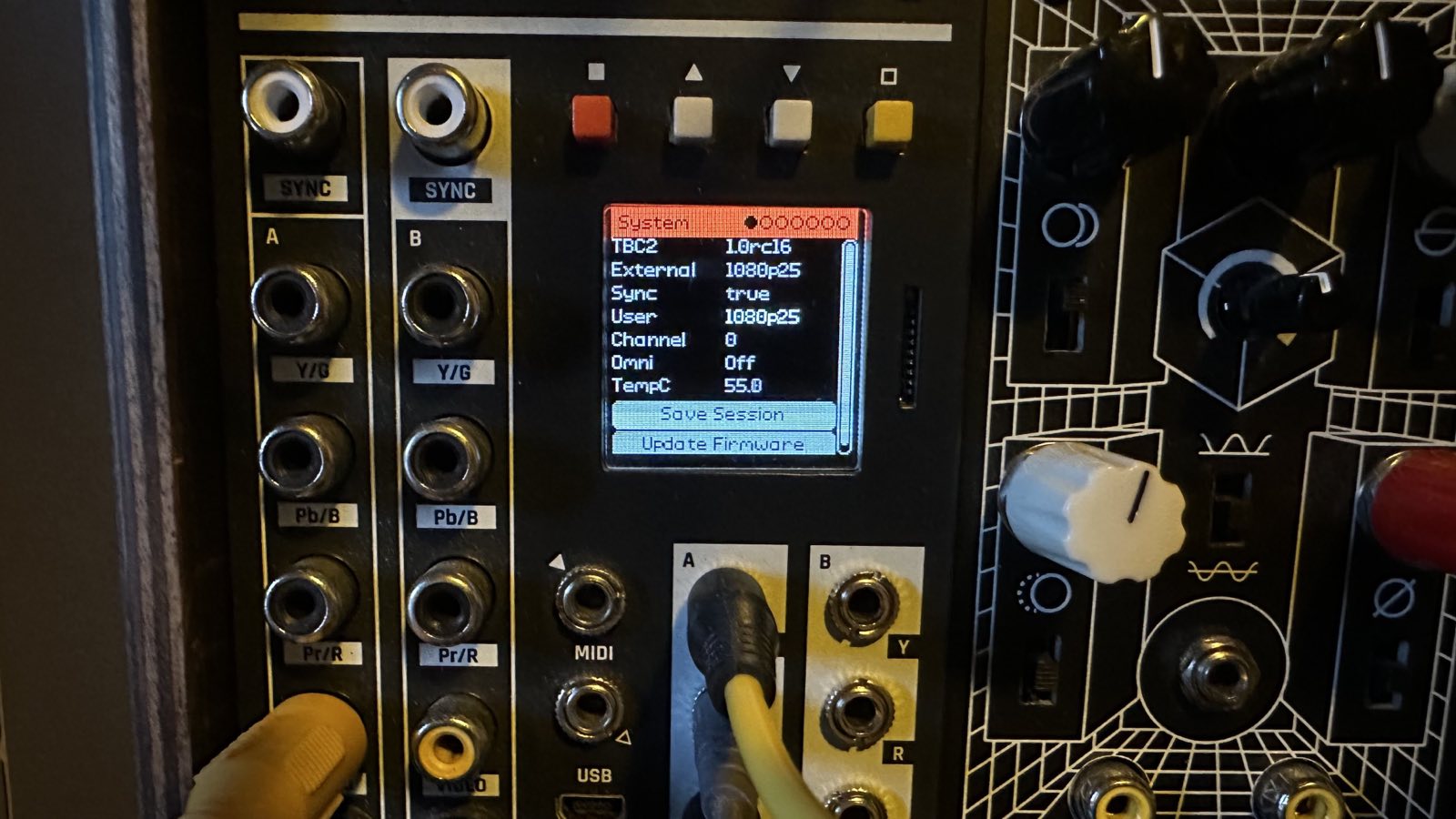

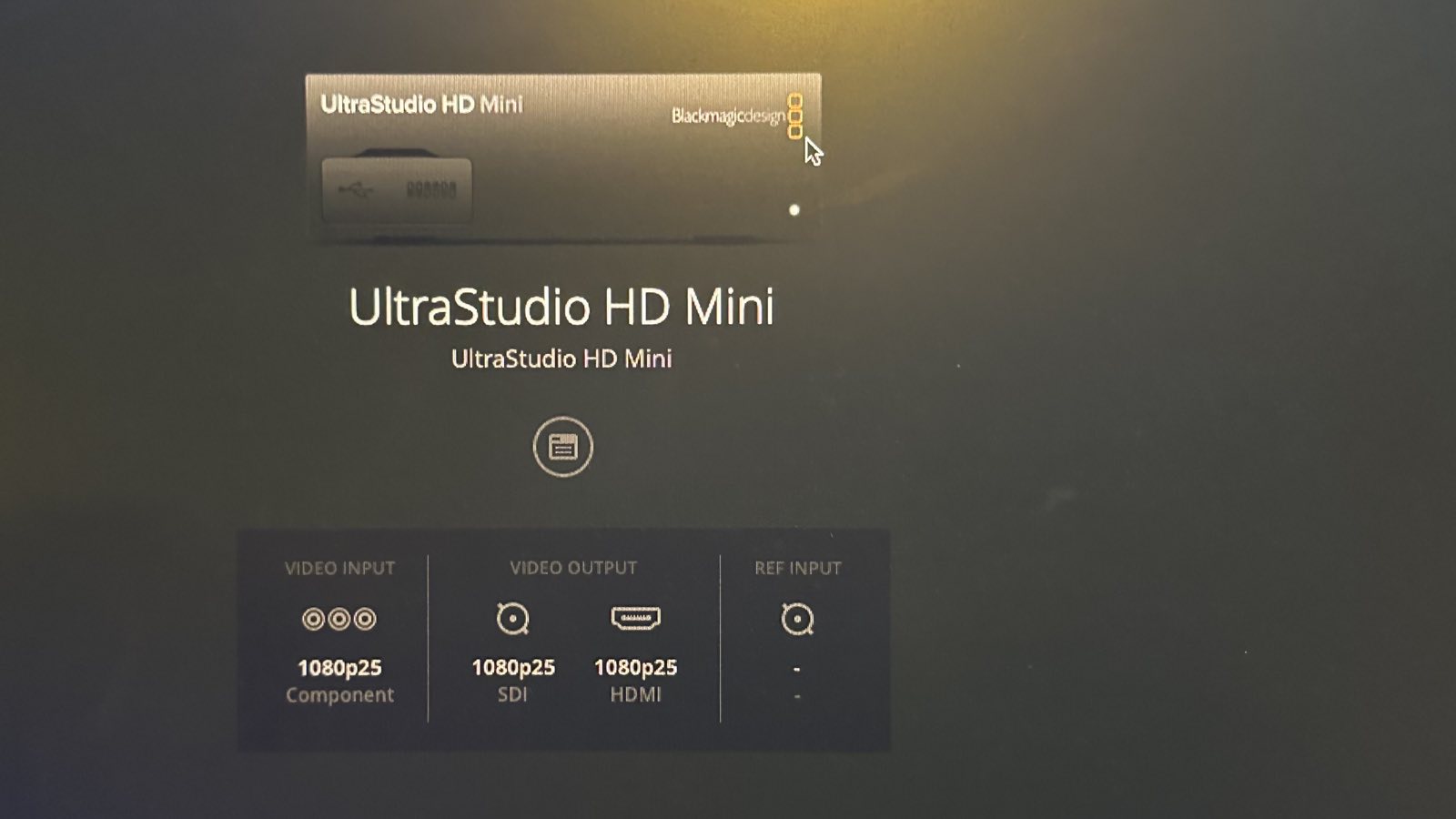

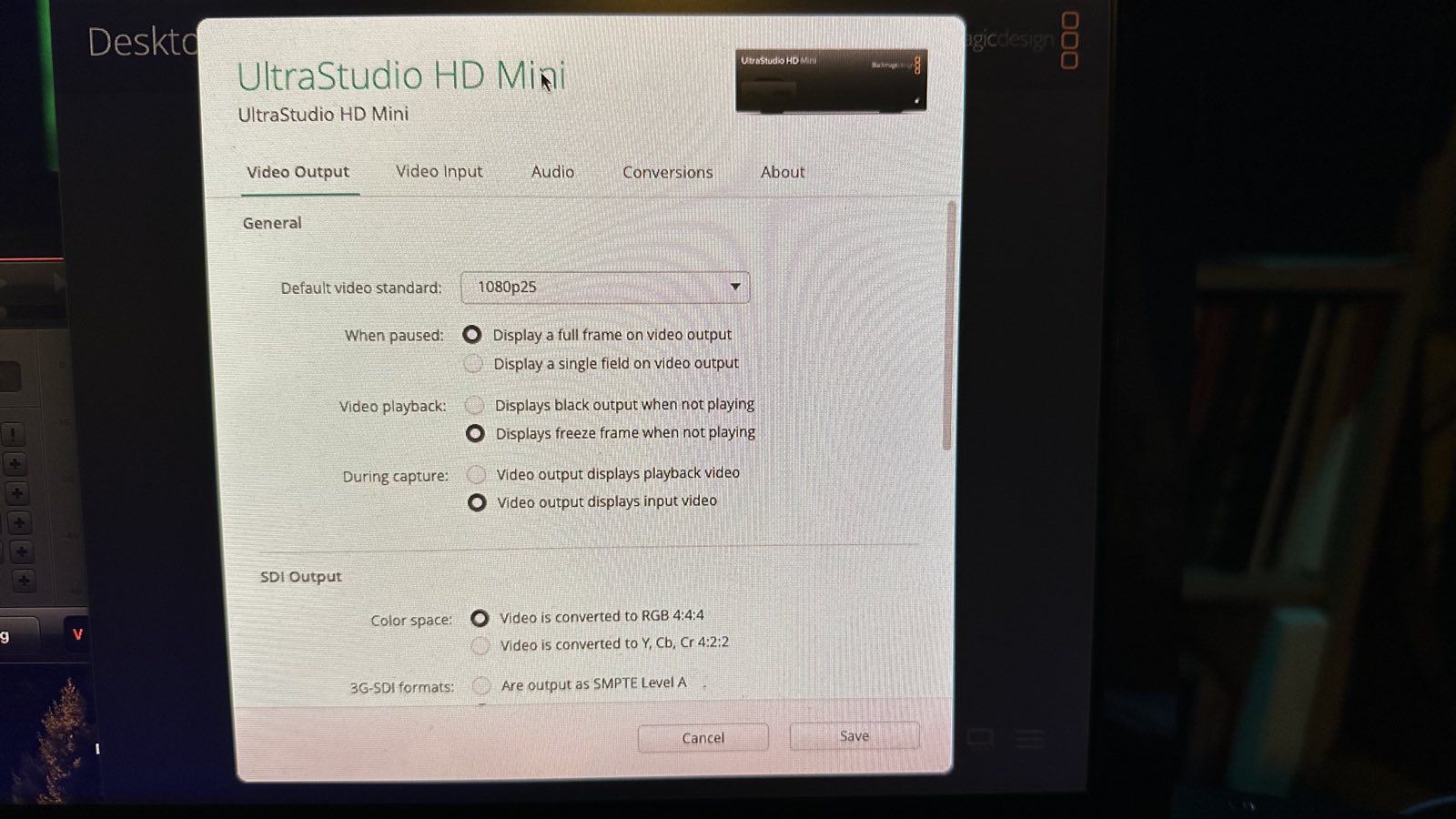

Here are some pictures of the settings in case there is something obviously wrong with them.
This is certainly an unusual result. I haven’t seen the screen splitting that you are getting.
Why do you need to stick with 1080p25 if all other formats work correctly? If you use ESG3 as your sync source then it doesn’t matter what format you are sending to TBC2.
I’ve planned sticking with the 25fps because to me it makes sense as all of my video projects and the source material are in 25fps.
I tried switching to 2398, 2997, 24, 25, and 30fps and they all split the screen as well.
Not sure how I missed this before. None of the usable (for me) options are working.
Does it behave the same if you send a signal other than ESG3 into the UltraStudio HD Mini?
How about when you monitor ESG3 using some other device?
How are you powering ESG3 and what modules share the power? What is your sync setup?
Have you tried isolating the ESG3 on DC power and monitoring its output with nothing patched into the front or back?
What is the serial number on the back of your ESG3?
Does the image look split on the TBC2 preview screen? If so, it’s a problem with your video source.
If not, does the image look split if you patch your ESG3 output directly to a video monitor or TV? If so, it’s a bug with TBC2 that we have not seen.
It wouldn’t be possible for ESG3 itself to produce an artifact like this. My guess is it’s an issue with the source playback – it’s a stereoscopic file or something like that.
It’s been a while and I can finally start to trouble shoot this thing. To avoid wasting days if not weeks trying to find a proper order, I’d like to ask if there is a preferable order and way of syncing the modules in a way that would work properly with the HD for external video processing AND with SD for when using the setup for Rutt-Etra type of stuff?

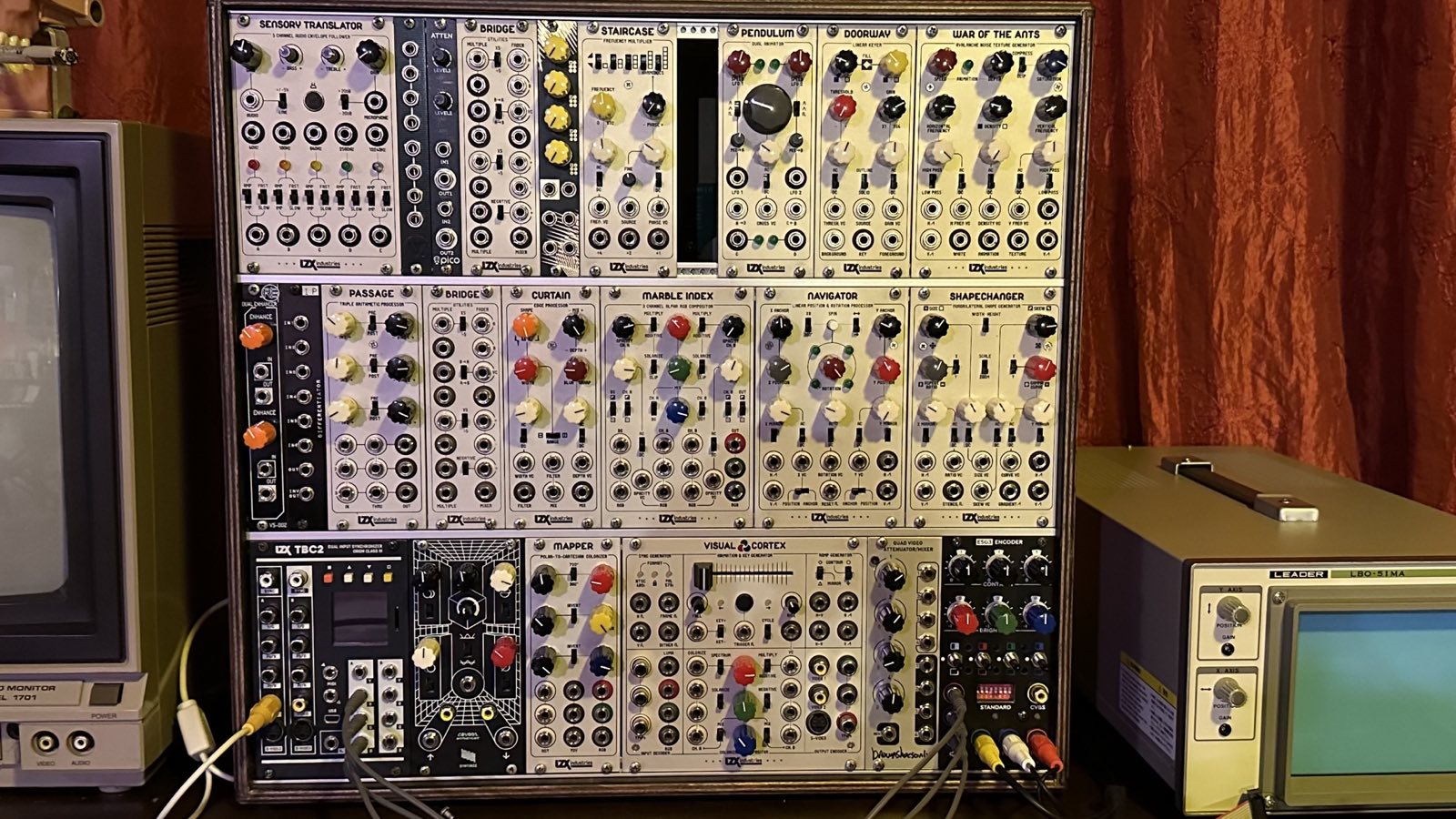

The modules with sync inputs are the TBC2, VC, ESG3, WOTA and the Navigator.
At this point it would be imaginable that some kind of consensus about these things might exist.
As for the file being stereoscopic etc, that is not the case. It’s a basic video file with nothing special going on and I use the Andor for streaming it.

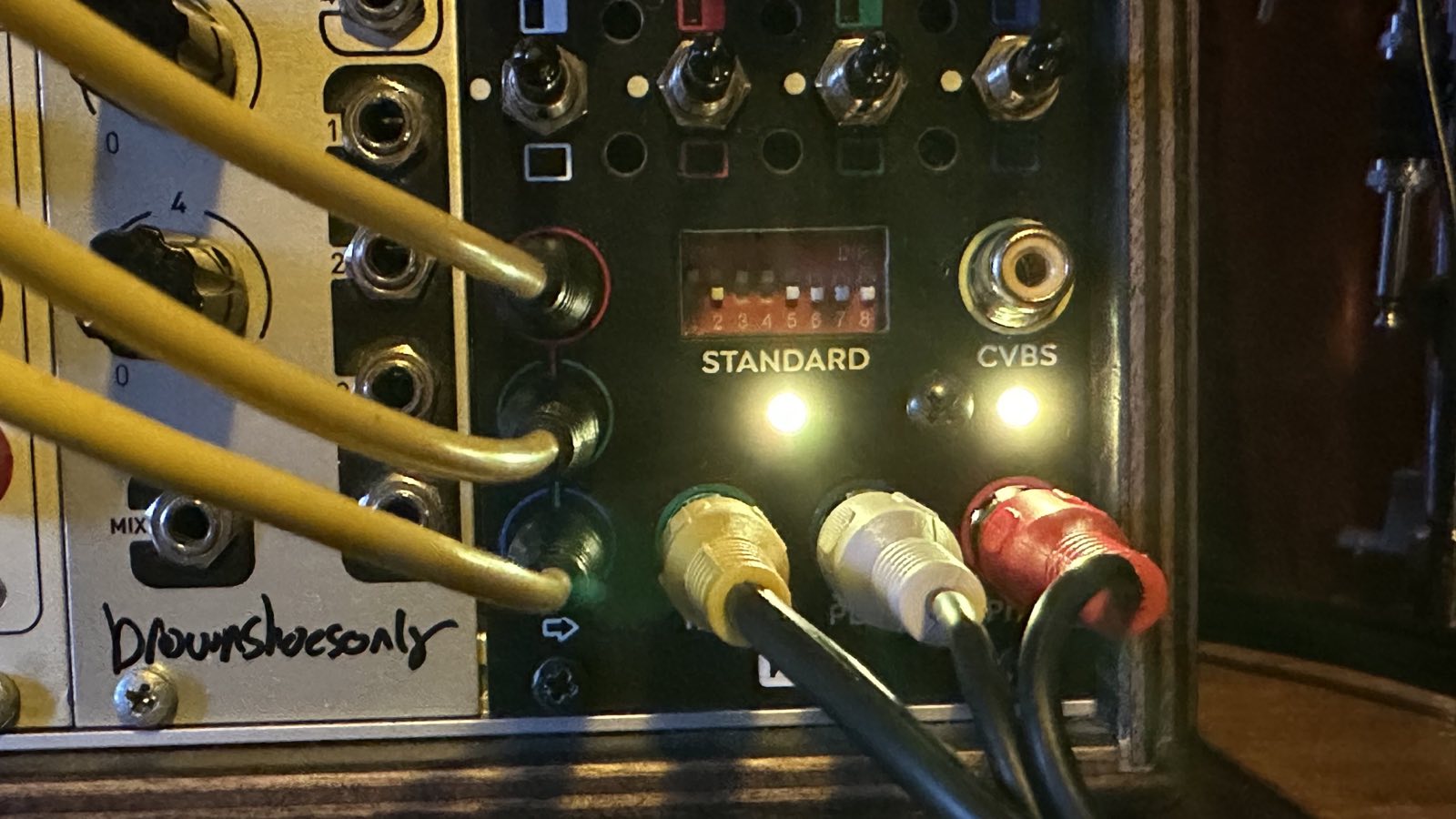

I now have only the TBC2 and ESG3 in my setup. The sync is going trom the ESG to the TBC. I have the dip switches set to 10110000 as the manual states is the configuration for 1080 25p. The picture is still divided in two. I have also tried it with different source material and no dice.
The picture on the TBC’s display is not split in two.
Thanks for the update!
Does it behave the same if you send a signal other than ESG3 into the UltraStudio HD Mini?
How about when you monitor ESG3 using some other device?
How are you powering ESG3 and what modules share the power?
Have you tried isolating the ESG3 on DC power and monitoring its output with nothing patched into the front or back?
What is the serial number on the back of your ESG3?
There is no preferred order for syncing your modules, so long as ESG3 is supplying the sync. Visual Cortex, Navigator, Shapechanger and WotA are not designed to sync in HD, so you might want to sync them together separately in NTSC–or keep your whole system in NTSC, if you want to patch them with your TBC2 and ESG3.
Unfortunately I don’t have any HD sources besides the ESG3 that I could feed into the UltraStudio HD Mini, or any other way to monitor the ESG3’s output.
The whole system is powered by the Doepfer 9-U case power supply, I don’t have a DC power supply to try with the ESG3.
I have no knowledge about that, other than that I haven’t. I will look into it right now.
edit: Judging by the stuff chatgpt told me about the procedure I would likely make a better job performing an open-heart surgery than getting this done…
LZX could provide a video tutorial on how this is done since a lot of people have zero knowledge about this stuff.
