Recommendations/sources for video cables and patch cables


#1

Post your good and bad experiences with various cables and sources to purchase them.

I’ll start! My favorite RCA cables for video synths are the Thinline brand, available in 1/5/10/15/20/25 ft lengths from L-Com. They are very high quality, proper 75 ohm impedance for professional video, and have a thin flexible cable similar to minijack patch cables.
PWD_CTL1R-_


#2

#3

I use the LZX/Blackmarket cables which come in 5, 12, and 24 inch lengths. They’re particularly useful for setting up multi-Vessel systems:

https://www.lzxindustries.net/shop/product/rca-sync-cable-3014

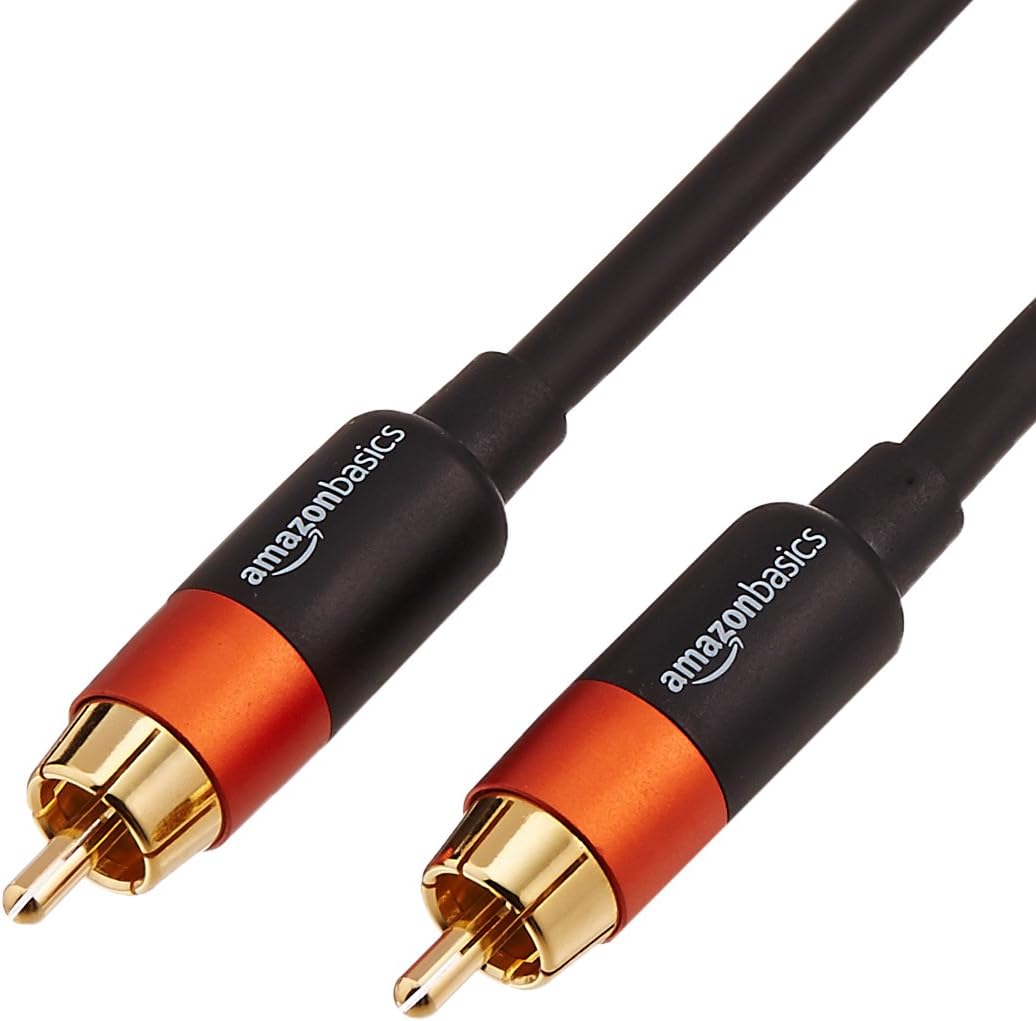

I’ve also had good luck so far with these from Amazon:

They come in 4, 8, 15, and 25 foot lengths.


#4

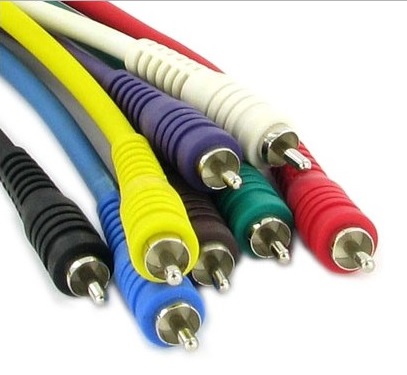

I got some coloured RCAs from Selbys, they have a nice soft feel to them and they come in short sizes as well as others. Build quality seems fine and the colours are helpful in a nest of cables.
https://www.selby.com.au/8-pack-of-30cm-selby-rca-to-rca-plug-cables-ap2432-30cm.html

selbys


#5

I stumbled upon Calrad products at Ametron in Los Angeles and they have been flawless so far.

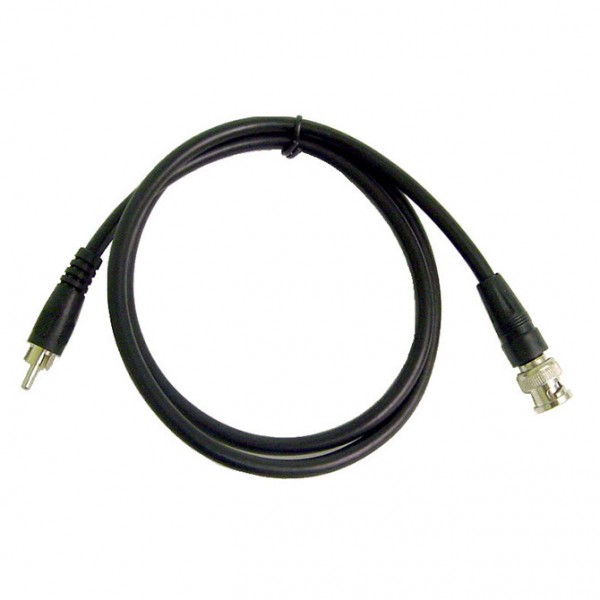

55-875-6 - 6ft Shielded BNC to RCA (75 Ohm)
55-875-12 - 12ft Shielded BNC to RCA (75 Ohm)

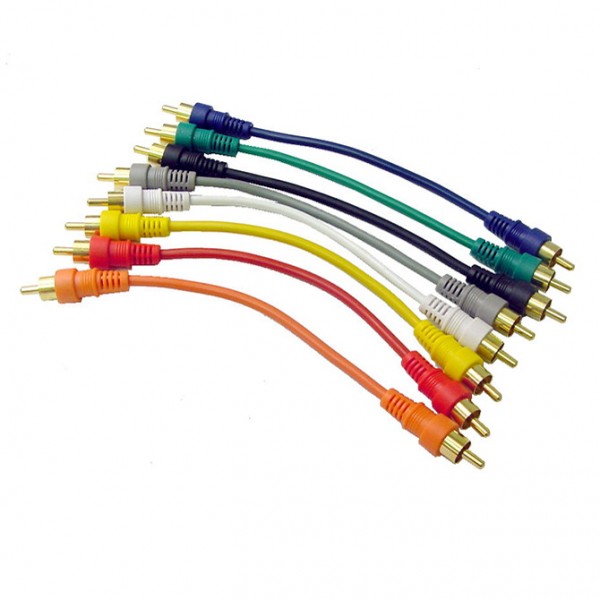

55-750G - 6in RCA Male to RCA Male Multi Colored Shielded Patch Cable
55-751G - 1ft RCA Male to RCA Male Multi Colored Shielded Patch Cable
55-753G - 2ft RCA Male to RCA Male Multi Colored Shielded Patch Cable
55-754G - 3ft RCA Male to RCA Male Multi Colored Shielded Patch Cable


#6

@JunkRhythm those RCAs look amazing!!!


#7

. i have four sets of the 3’ cables - solid feel and the plugs are snug but not tight on equipment. i’m glad you posted this b/c i forgot where i got them from! :slight_smile:


#8

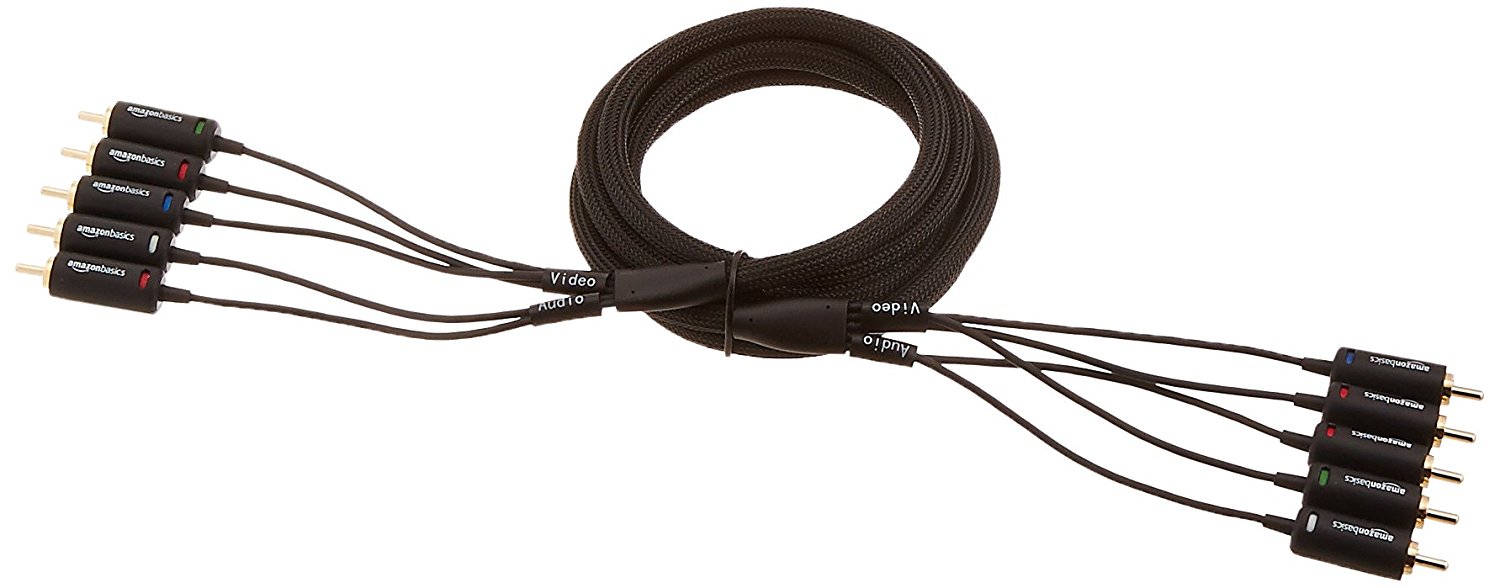

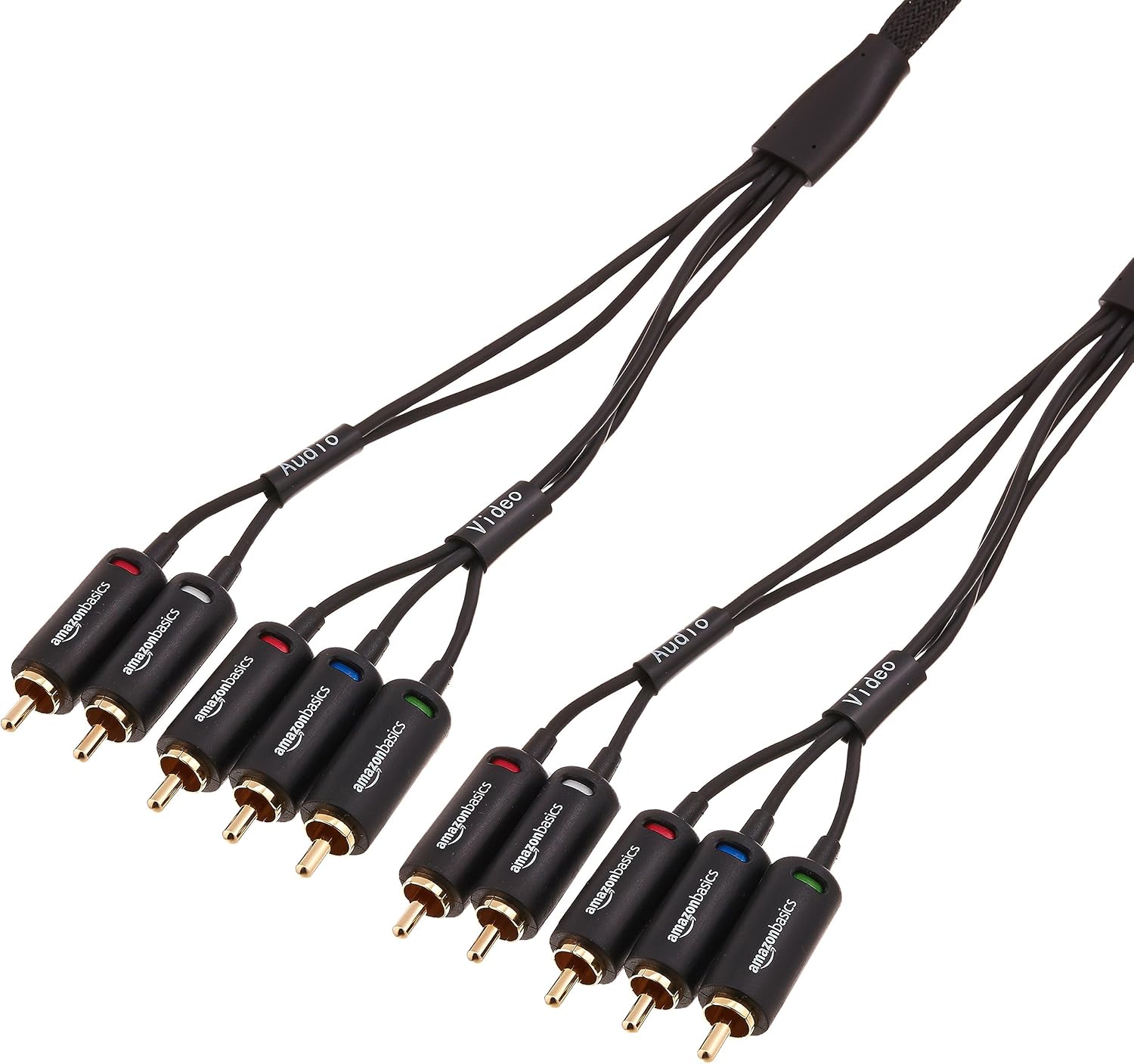

I ended up buying some of these Amazon basics component + audio cables and just cutting out the audio cables.


#9

I’ve got a cable question regarding the Andor. I purchased what I thought was a replica of the cable that came with my friend’s deeluxe Andor for running the Andor into the Visual Cortex. The one posted below, however, does NOT sync w the VC as the one that comes w the deeeeluxe Andor. Does anyone who’s bought the plain old pedestrian Andor know where to source a reliable 3.5mm AV mini-plug to RCA cable?

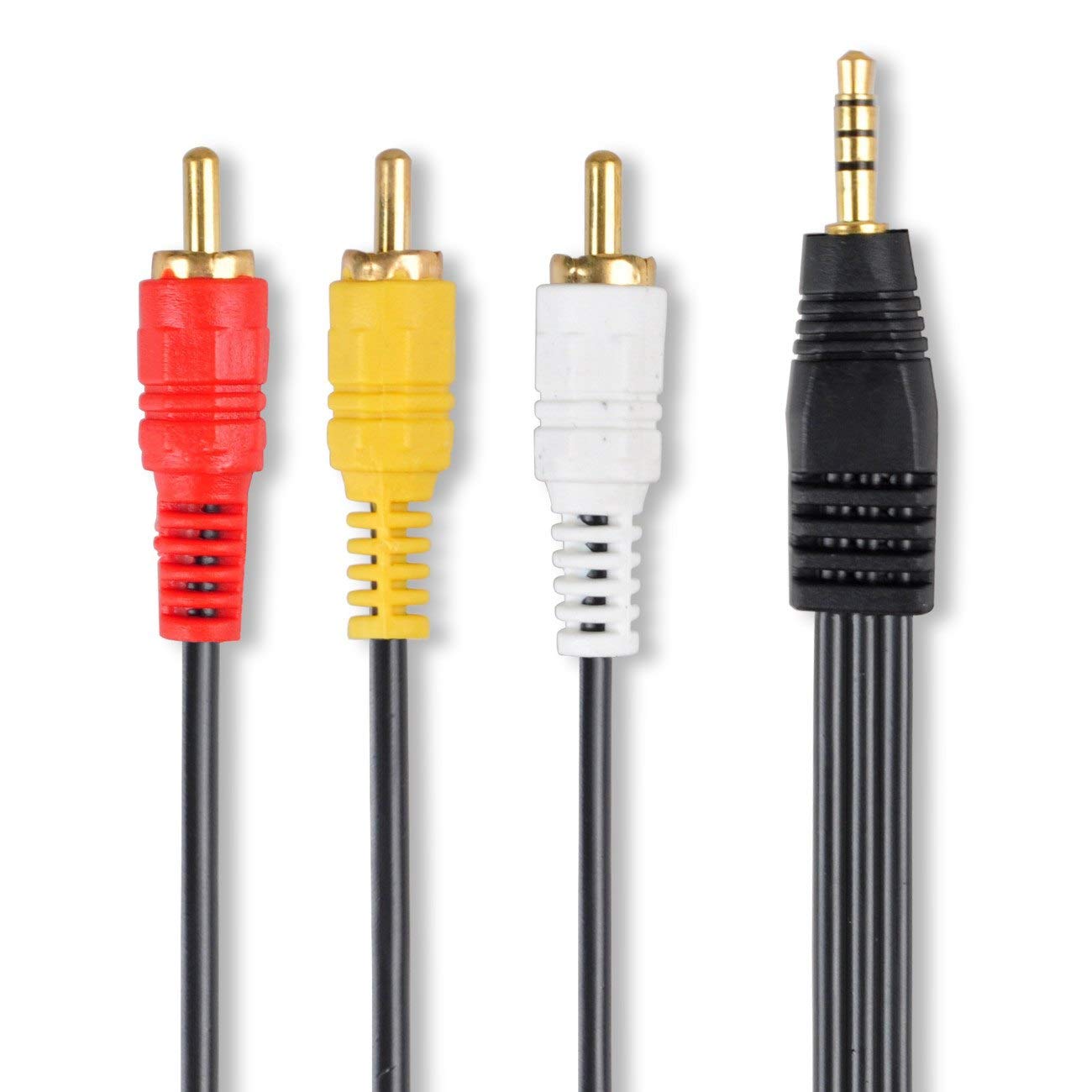

Cmple - 3.5mm to 3 RCA Camcorder Video Audio Cable - 6 ft https://www.amazon.com/dp/B000KW6VJ2/ref=cm_sw_r_cp_api_p7DHBbZ3YKA79


#10

I am pretty sure I read somewhere that standard 3.5mm cables do not work with AND OR 1(Ras Pi) type devices. I maybe wrong, but, this is what I ended up getting. I have not spent a lot of time with it but it seems to work … I wanted to be sure to have audio output so this is one reason it works for my use. I use a composite to component converter before taking it into Cortex allowing for full color.

@paulslocum can maybe confirm the best cable for this purpose?


#11

Easy fix! I forgot where I read this, maybe via LZX, but I tried the red RCA, rather than the yellow as we would assume. The Andor synced immediately to the VC.


#12

@DesertMuseum Regular 3.5mm stereo audio-only cables do work with the Andor 1, although there is a bug that causes analog audio to not work when the Andor 1 is used with some HDMI monitors (a fix for this is coming in the next week or two).

As far as analog audio/video breakout cables, that Zune cable you linked is one I would recommend. I have one here and it works great.

There are a lot of different wirings for those red/white/yellow 3.5mm breakout cables. Some work as expected, some have the video and audio switched, and some don’t work at all. Generally cables that say they are for the “Zune” or “iPod” will work.


#13

Thanks for this information. I did not realize the hdmi / analog audio glitch, I will look foward to the bug fix. My intention was to use AndOr1’s hdmi output into TBC2 and at the same time use the AndOr1 analog audio outputs to run into audio processing. I have not tested this yet (waiting for the release of TBC2) but hope it will work.


#14

FYI, this cable does NOT appear to work with my Andor1. Audio works fine, but video is scrambled, though I can sort of make out the setup screen, enough to flip through options.

Pretty sure it’s not the Andor1, as it works with HDMI and is on the latest firmware.

Repeat, does NOT work with Andor1!
